INSPECTION PROCEDURE 10: Rear Window Defogger Function does not Operate: Notes

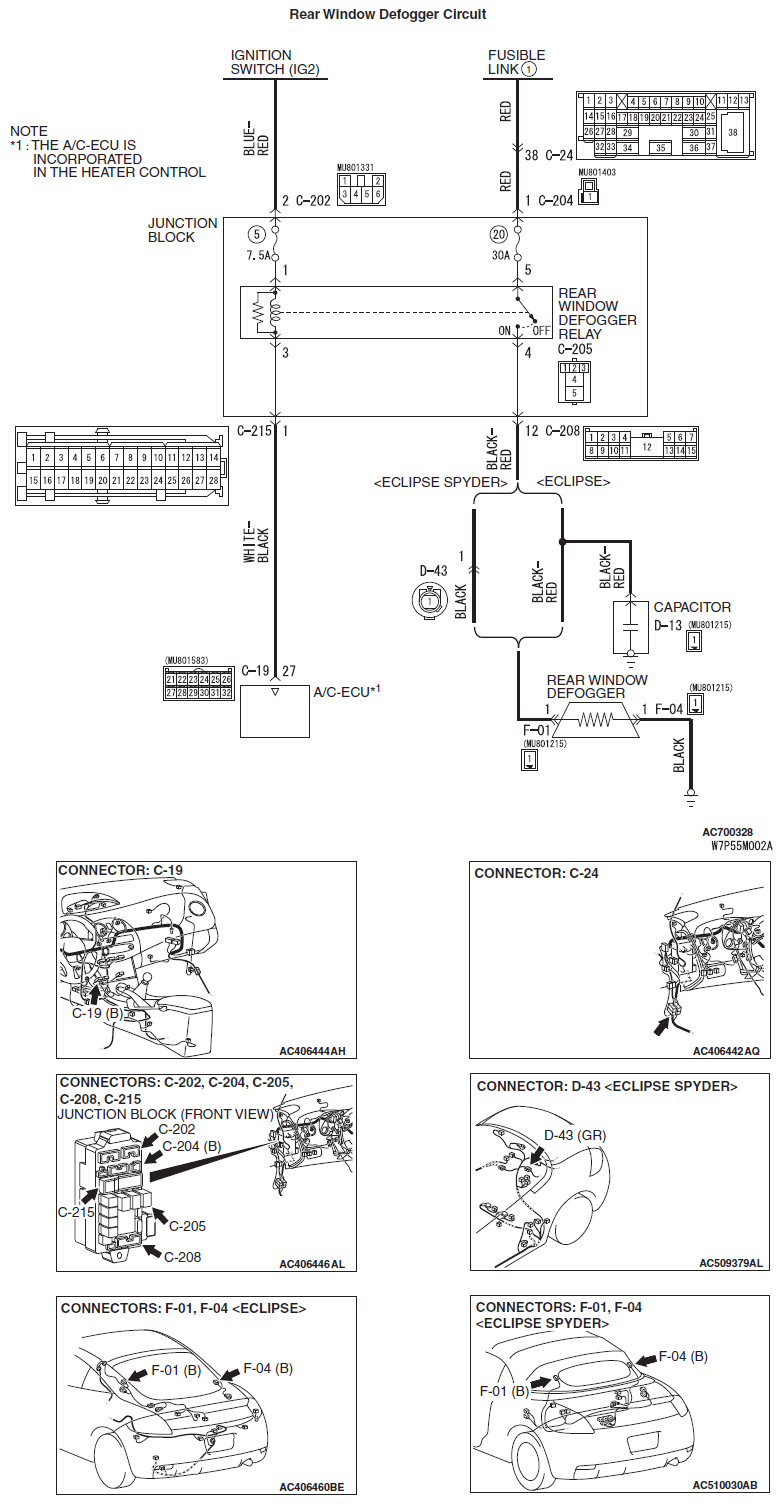

Fig 1: Rear Window Defogger Circuit
G06693026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
