Power Distribution System <Eclipse (Vehicles With Halogen Type Headlight)>

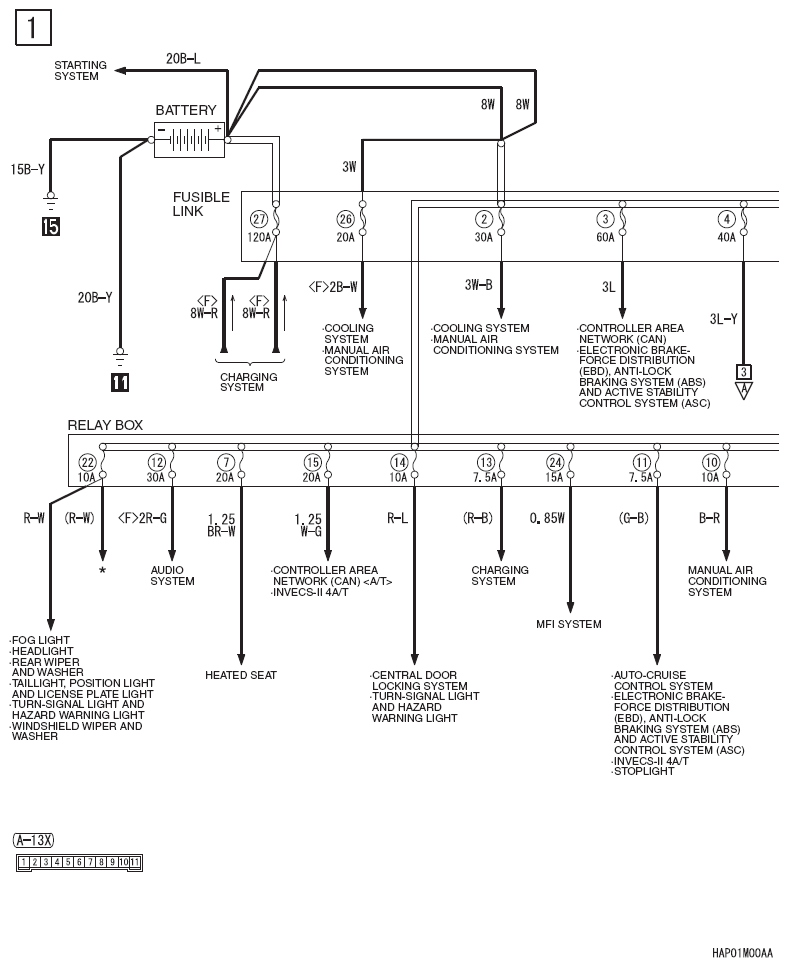

Fig 1: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

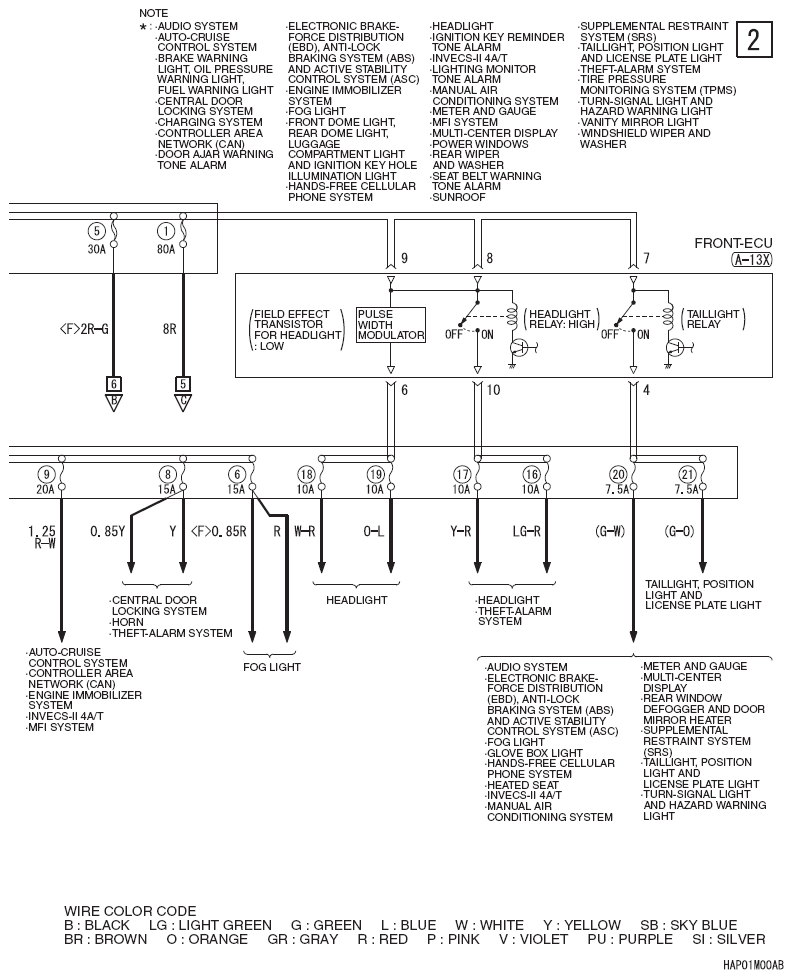

Fig 2: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

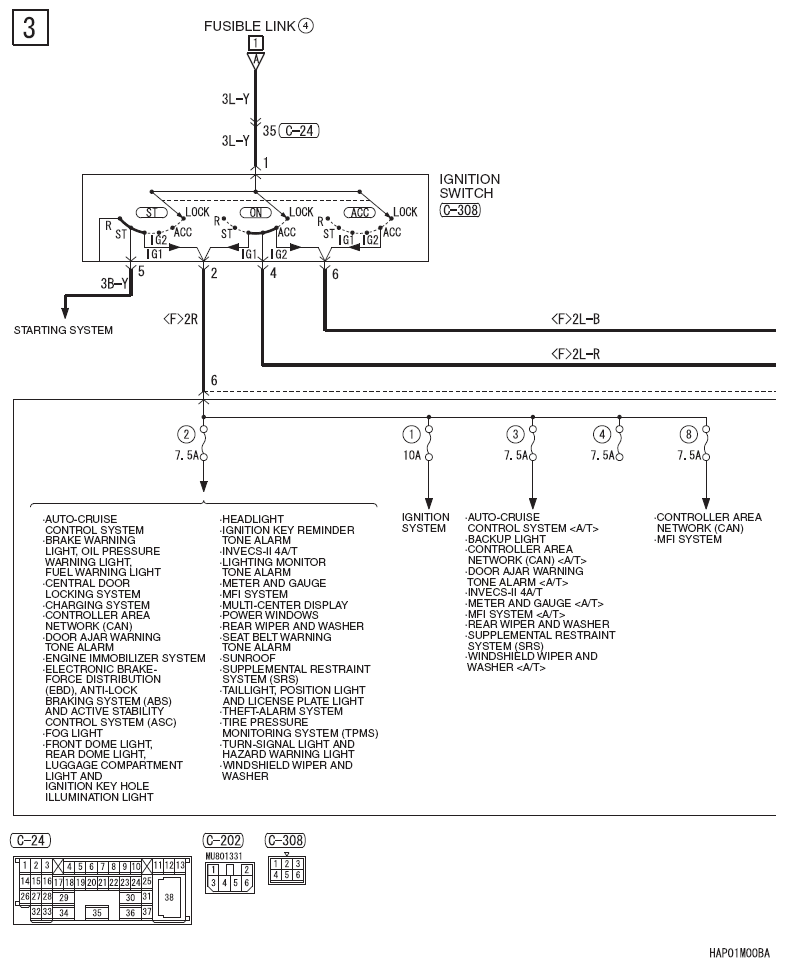

Fig 3: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

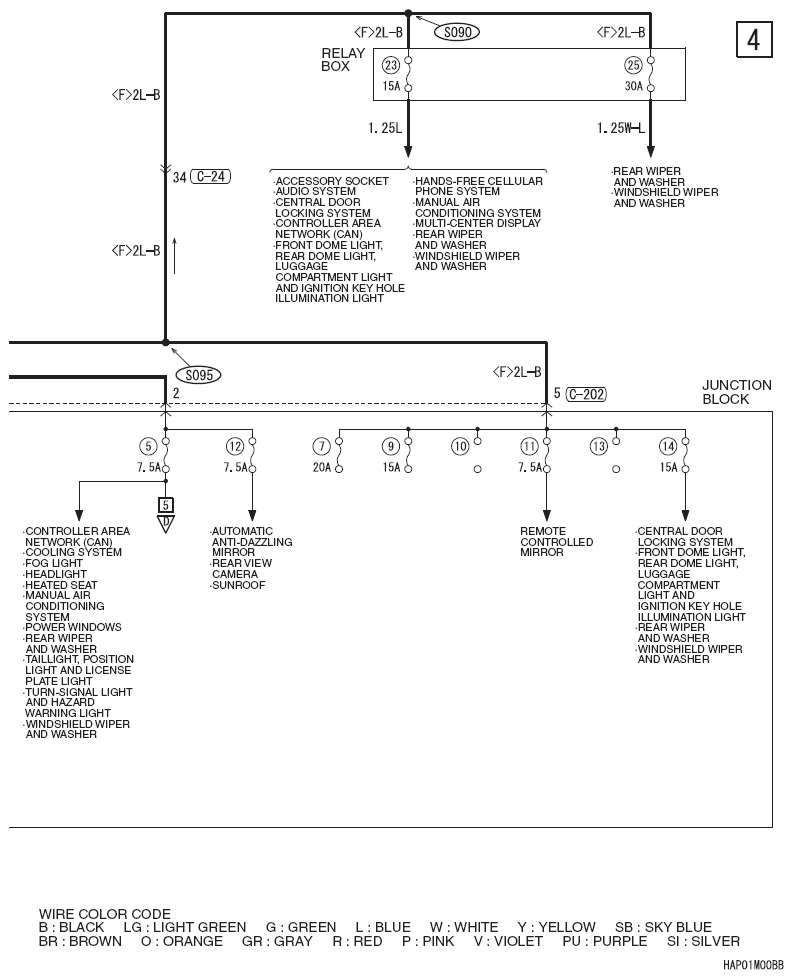

Fig 4: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

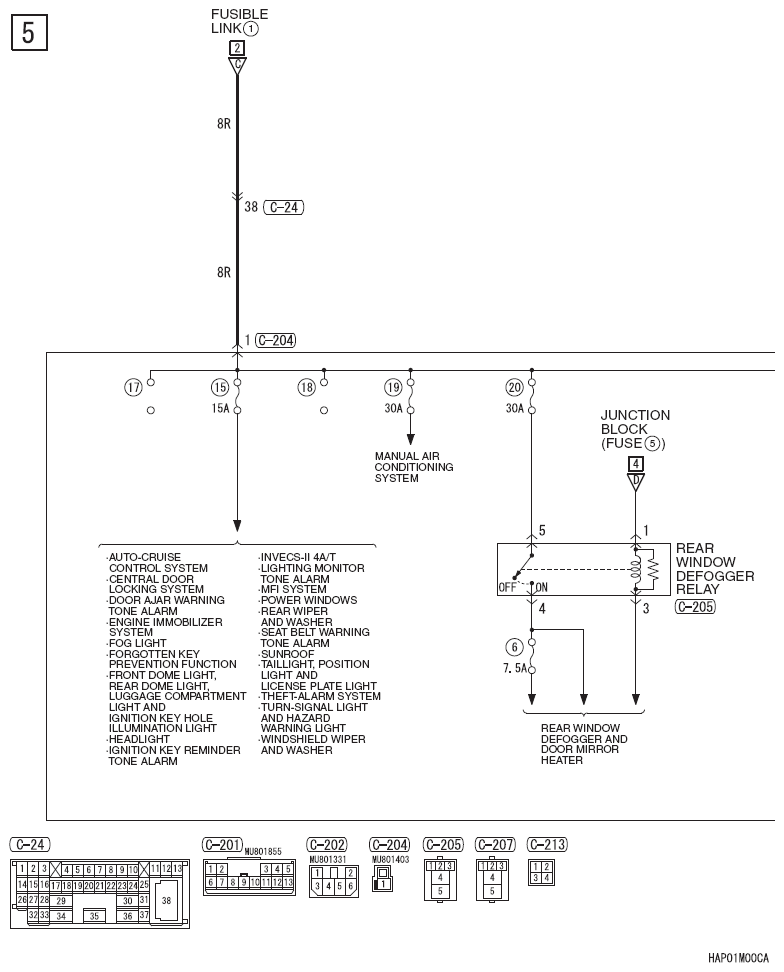

Fig 5: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

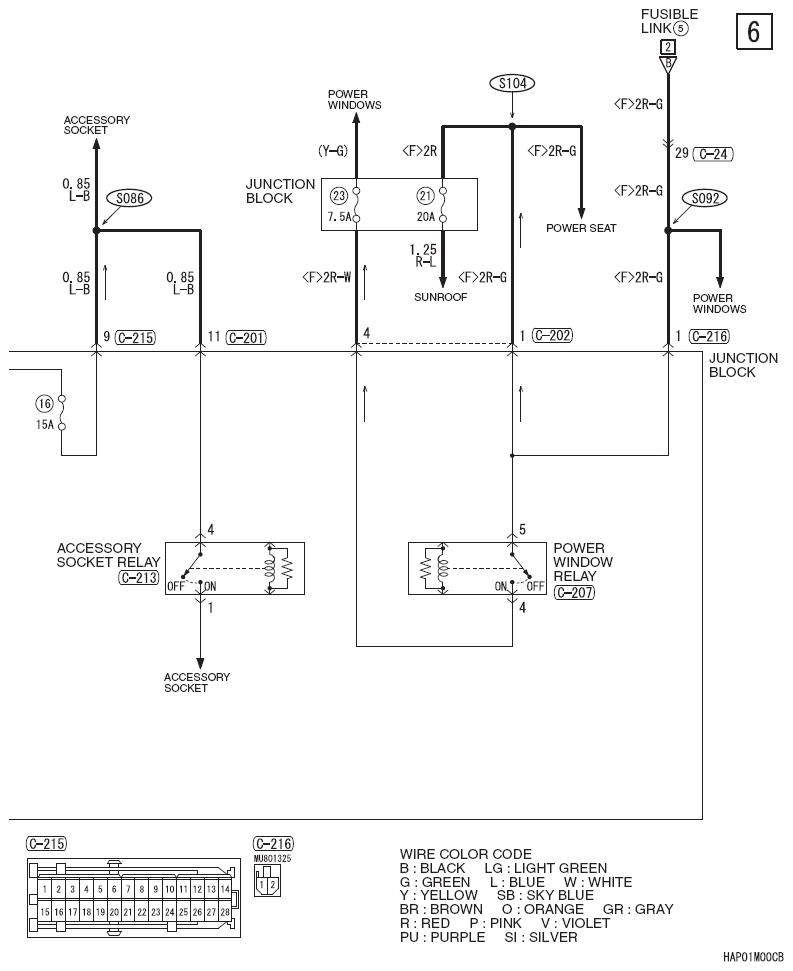

Fig 6: Power Distribution System - Eclipse (Vehicles With Halogen Type Headlight) Circuit Diagram (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
