<Driver's Air Bag Module And Clock Spring>

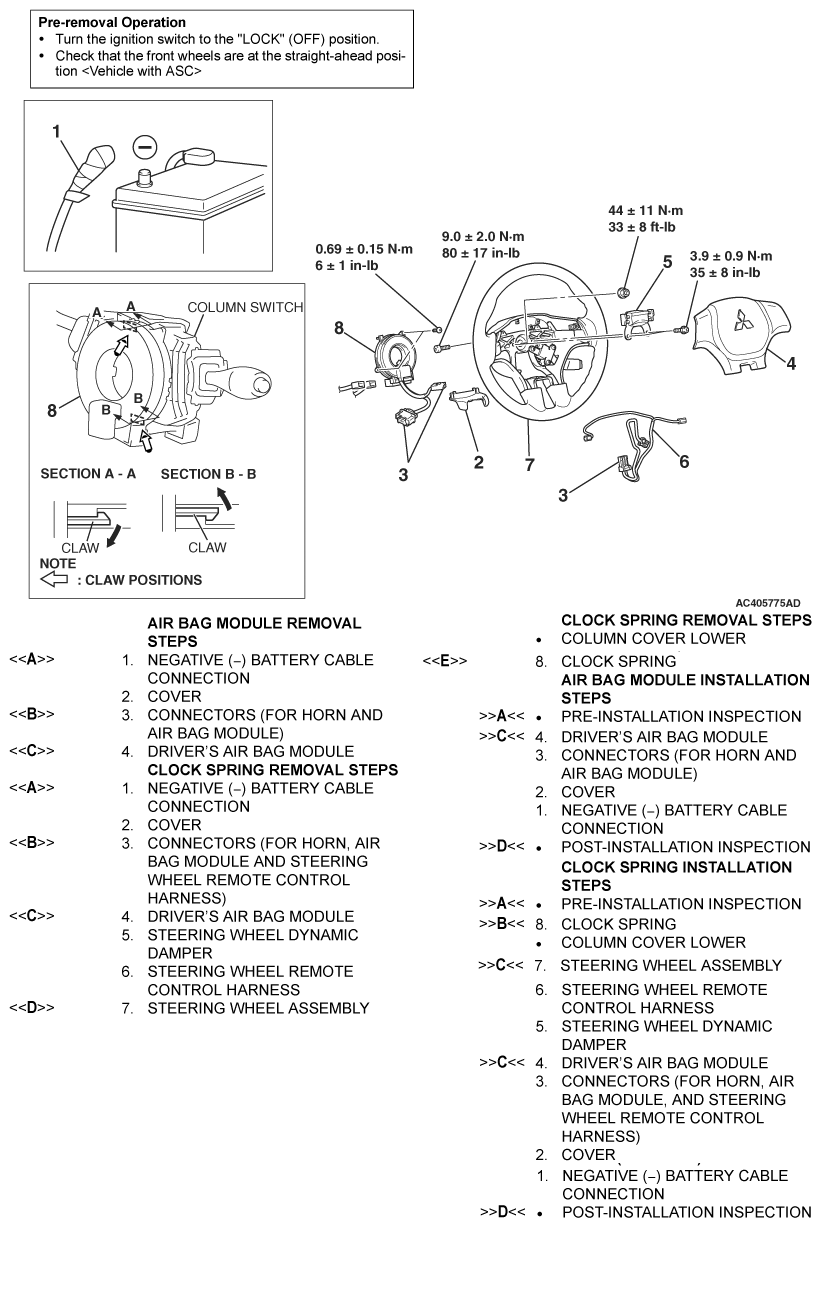

Fig 1: Driver's Air Bag Module And Clock Spring Components With Torque Specification
G06687586Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
