>>B<< Clock Spring Installation
WARNING:
Ensure that the clock spring's mating marks are properly aligned. If not, the steering wheel may not rotate completely during a turn, or the flat cable in the clock spring could be damaged, This would prevent normal SRS operation and possibly cause serious injury to the driver.
- Turn the clock spring clockwise fully.

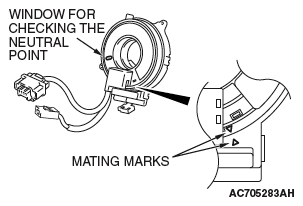

- Turn the clock spring anti-clockwise approximately three and 1/2 turns to align the mating marks.
- Check that the white or yellow roller can be seen from the window for checking the neutral point when the mating marks are aligned.NOTE: If the white or yellow roller cannot be seen or black roller can be seen, the neutral point is not aligned correctly.
- Install the clock spring to the column switch.
