>>C<< Transfer Driven Gear Installation

  1. Set the output shaft on the press support stand.
  2. Using special tools MD998823, MD998812 and MD998813, press in the transfer driven gear.

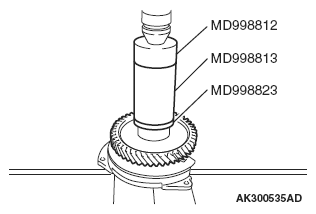

Fig 1: Pressing Transfer Driven Gear
G06245681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
