Ignition Switch Continuity Check

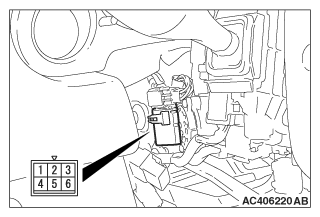

Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.
SWITCH POSITION CHART
| SWITCH POSITION | CONNECT TESTER BETWEEN: | SPECIFIED CONDITION |
|---|---|---|
| "LOCK" (OFF) | 1-2, 1-4, 1-5, 1-6 | Open circuit |
| "ACC" | 1-6 | Continuity exists (2 ohms or less) |
| "ON" | 1-2, 1-4, 1-6 | Continuity exists (2 ohms or less) |
| "START" | 1-2, 1-5 | Continuity exists (2 ohms or less) |
