DTC C1215: RL wheel SPD. SNSR. malfunction: Notes

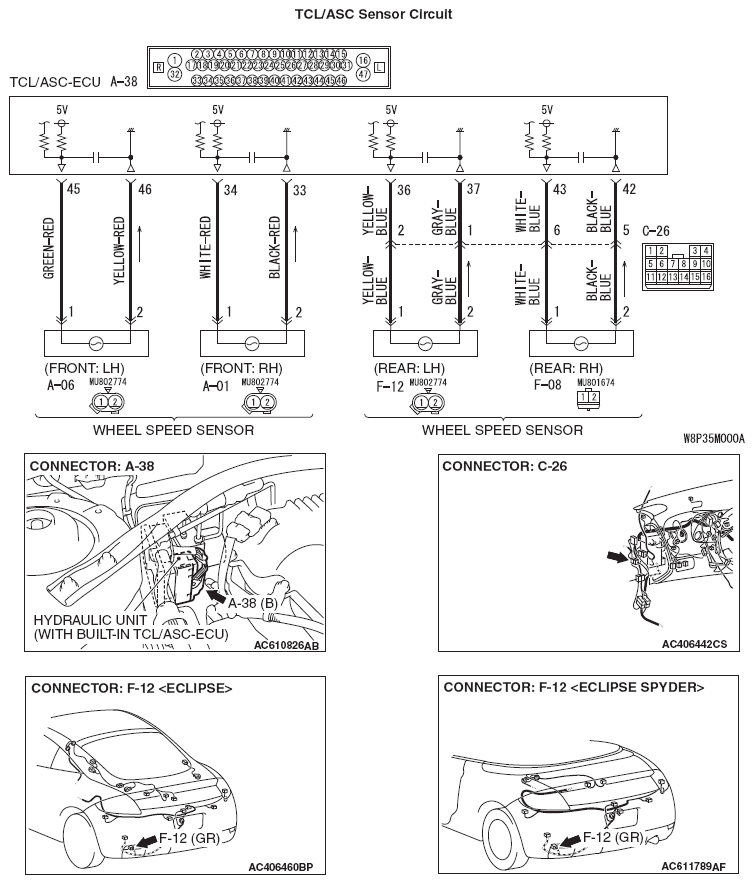

Fig 1: TCL/ASC Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Diagnose the CAN bus lines before the DTC (Refer to TROUBLE CODE DIAGNOSIS .
