INSPECTION PROCEDURE 4: Steering wheel sensor power supply circuit system: Notes

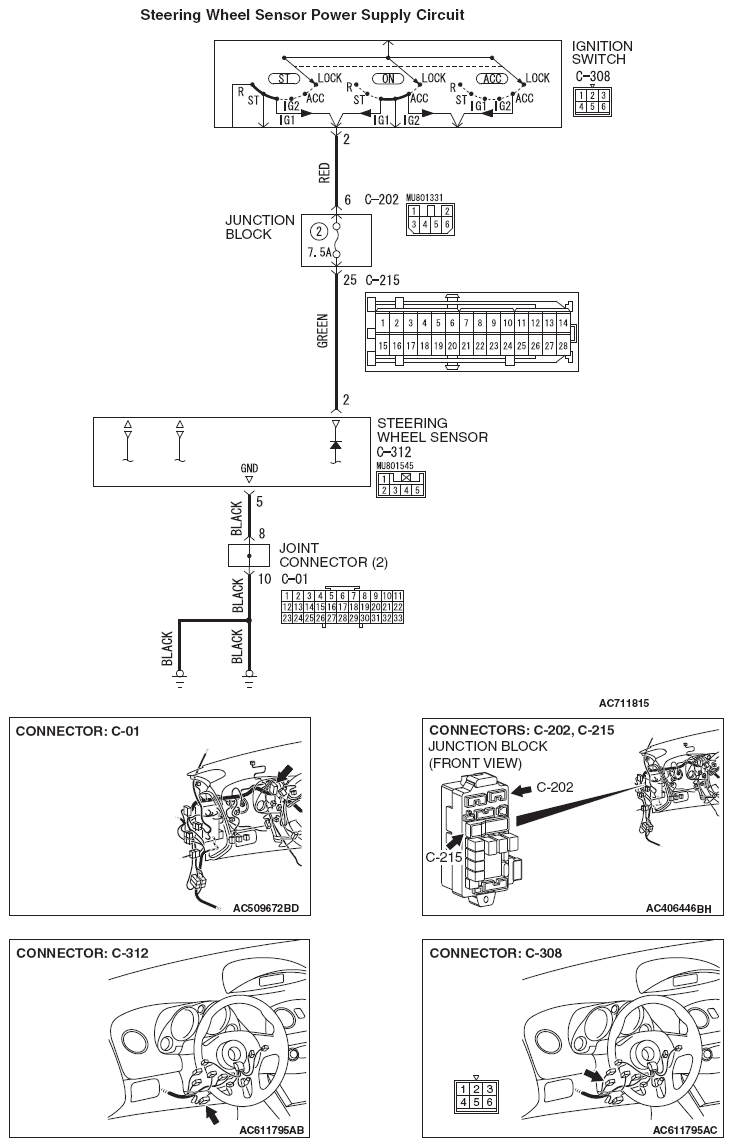

Fig 1: Steering Wheel Sensor Power Supply Circuit Diagram
G06689877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
