<<M>> Steering Gear Bushing Removal

Use special tools MD998812, MD998813, MD998822 and MD998368 to remove the steering gear bushing.

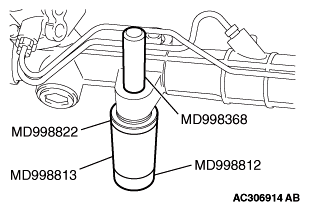

Fig 1: Removing Steering Gear Bushing
G06249335Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
