>>A<< Stabilizer Bar/Stabilizer Bushing/Stabilizer Bar Bracket Installation

Align the stabilizer bar identification mark with the right end of the bushing (LH).

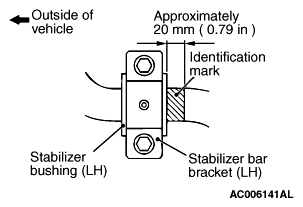

Fig 1: Aligning Stabilizer Bar Identification Mark With Right End Of Bushing
G06248977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
