>>B<< Steering Column Dash Panel Cover/Front Axle No. 1 CROSSMEMBER/Pinch Clamp Installation

1. Install the pinch clamp and align the steering column dash panel cover notch (arrow A) with the steering gear lug (arrow B), and then install the steering column dash panel cover to the steering gear.

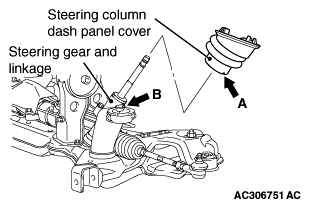

   Fig 1: Steering Column Dash Panel Cover

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use the end pliers to tighten the pinch clamp. The pinched dimension should be as follows.

   A: 2.5 ± 0.5 mm (0.10 ± 0.02 inch)

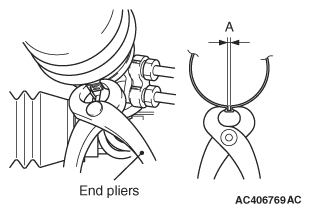

   Fig 2: Tightening Pinch Clamp

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE:

   • Pinch clamp must be located securely between protrusions of the steering column dash panel cover.

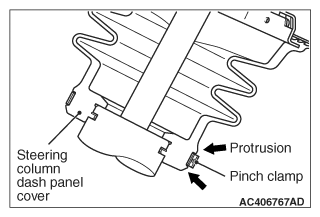

     Fig 3: Pinching Steering Column Dash Panel Cover Clamp

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   • Pinching location must be in the area shown in the illustration.
   Fig 4: Pinching Location

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Use a transmission jack to lift the crossmember assembly.

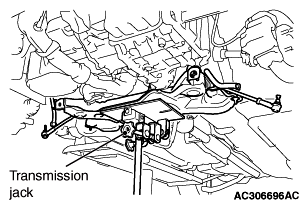

   Fig 5: Lifting Transmission

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. From inside the vehicle, pull tab A and then tab B to secure the three clips to the body panel.
   NOTE: When securing the steering column dash panel cover to the body panel, be careful that the seal lip does not move backwards.
5. Check that it has been secured by pressing down the tip of the clips by your finger. Also check that the steering column dash panel cover is installed securely to the steering gear.

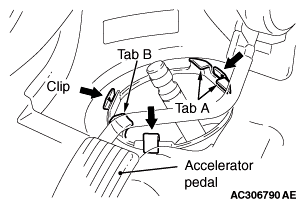

   Fig 6: Accelerator Pedal And Clip

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 7: Steering Column Dash Panel Cover

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. After installing the steering column dash panel cover, check that the steering column dash panel cover rubber is not disengaged from the retainer. If there is any doubt, release the clips from the body, engage the rubber again and reinstall to the body.
7. Tighten the crossmember mounting bolts to 180 ± 20 N.m (133 ± 15 ft-lb).

Fig 8: Rubber And Retainer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
