General Information

All vehicles are equipped with power steering.

• A 4-spoke steering wheel is used.
• The steering column has a shock absorbing mechanism and a tilt steering mechanism.
• A rack and pinion steering gear is used.
• An oil pump responsive to engine RPM is used for stable steering at high speeds.
• The separate plastic resin oil reservoir reduces weight and to make the fluid level checking easier.

<2.4L Engine>

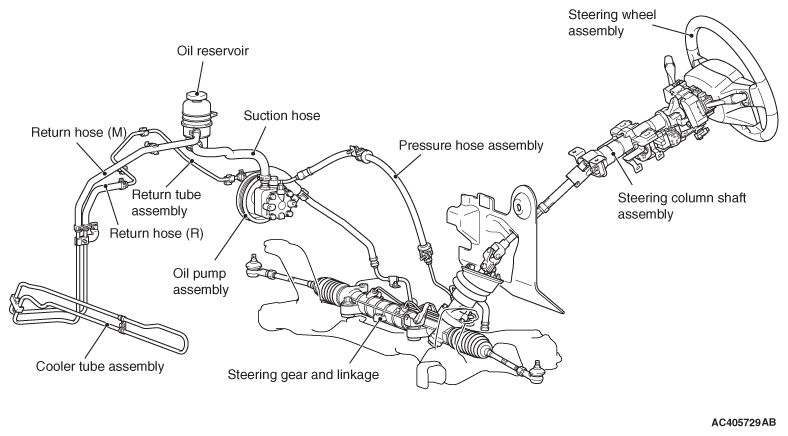

Fig 1: Power Steering Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<3.8L Engine>

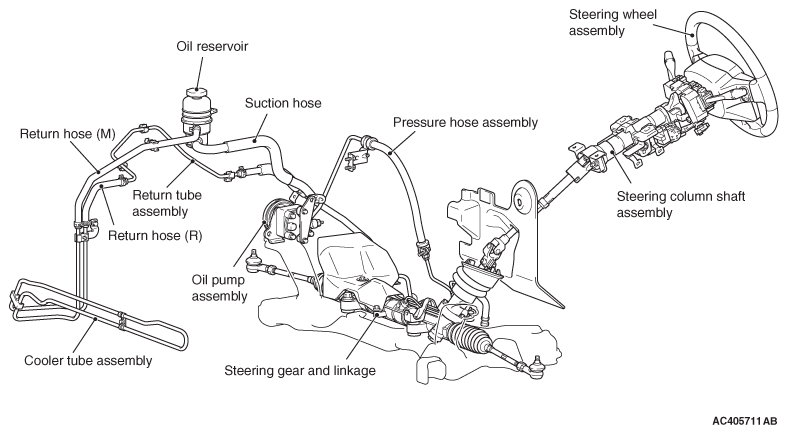

Fig 2: Power Steering Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
