<<C>> Jam Nut/Rack Support Cover Removal

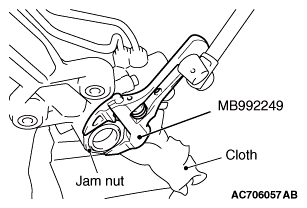

Using special tool MB992249, remove the jam nut from the gear box.

Fig 1: Removing Jam Nut From Gear Box
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

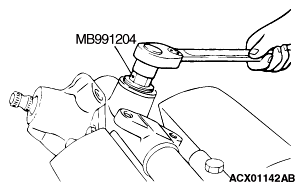

Using special tool MB991204, remove the rack support cover from the gear box.

Fig 2: Removing Rack Support Cover From Gear Box

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
