DTC 15: Auto-cruise Control Switch System: Notes

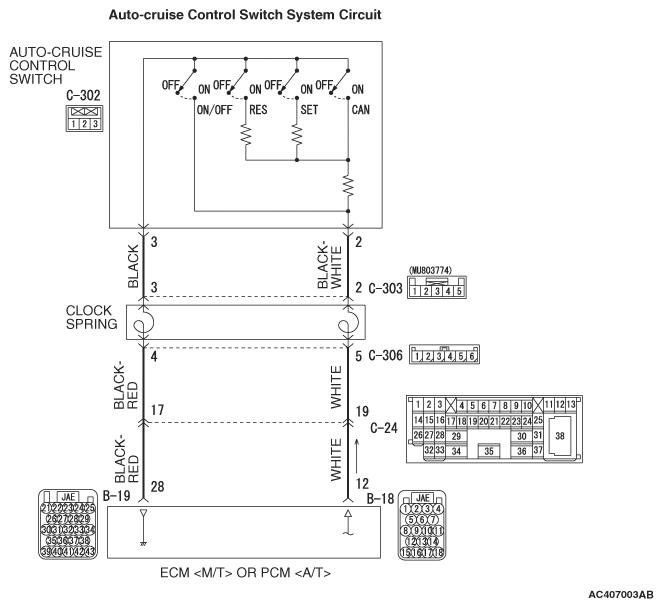

Fig 1: Auto-cruise Control Switch System Circuit
G06684341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

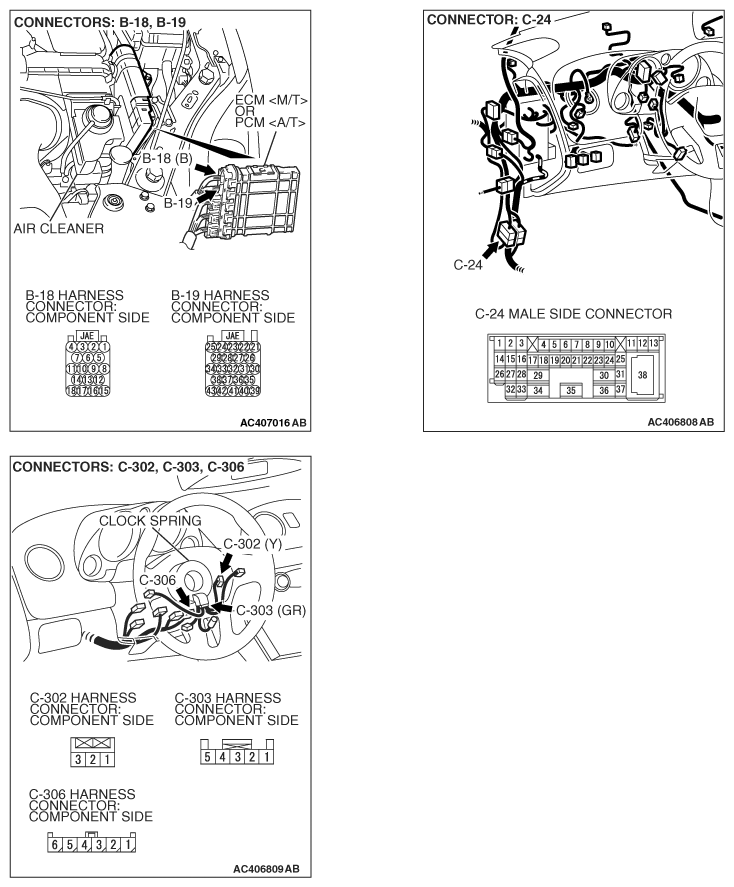

Fig 2: Connectors C-24, B-18, B-19, C-302, C-303, C-306
G06684342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
