<<E>> Front Wheel Hub Assembly Removal

  1. Remove the front wheel hub mounting bolts while pushing out the driveshaft by hand.
  2. If it is difficult to push out the driveshaft by hand, use special tools MB990242, MB990244, MB991354 and MB990767 to push out the driveshaft from the hub and knuckle.
  3. If the front wheel hub is seized, remove the knuckle together with front wheel hub and fix them with a vise.
  4. Hang the driveshaft on the vehicle body with a rope.

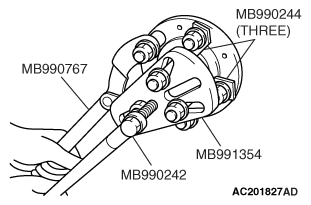

    Fig 1: Removing Front Wheel Hub Mounting Bolts
    G06699706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Use special tools MB990244, MB991354 and MB990211 to pull out the front wheel hub from the knuckle.
    Fig 2: Pulling Out Front Wheel Hub From Knuckle Using Special Tools
    G06248753Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
