>>D<< Spring Pin Installation

Drive in the spring pin so that the slit is in the direction shown in the illustration.

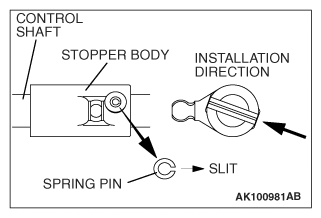

Fig 1: Identifying Spring Pin
G06684638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
