Disassembly And Assembly: Notes

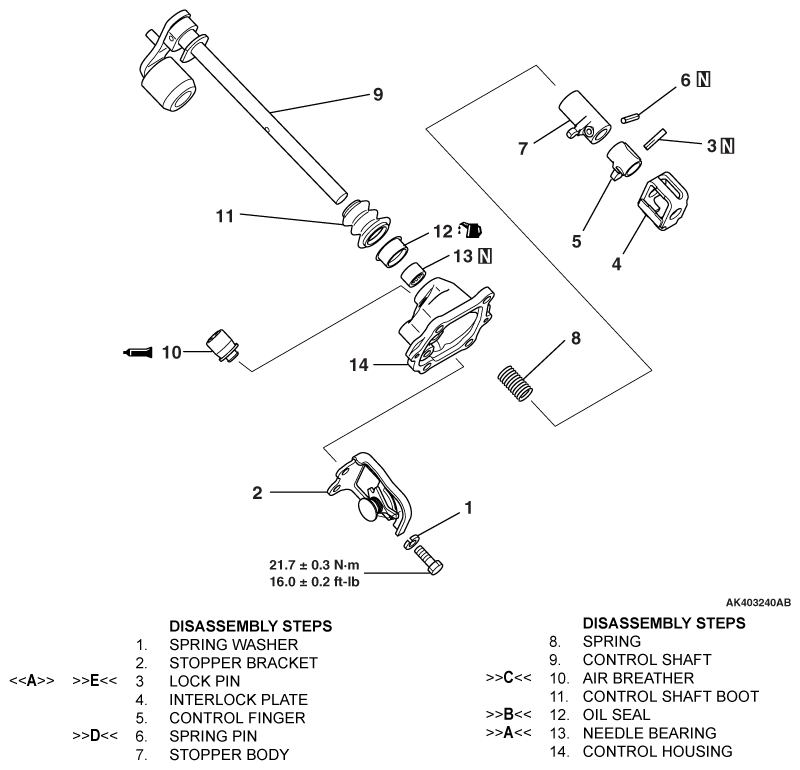

Fig 1: Disassembly/Assembly Of Control Housing Components With Torque Specifications
G06684632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
