>>C<< Snap Ring Installation

1. Install the thickest snap ring that can be fitted in the snap ring groove of input shaft.
2. Make sure that the ball bearing end play meets the standard value.

Standard value: 0 - 0.12 mm (0 - 0.0047 inch)

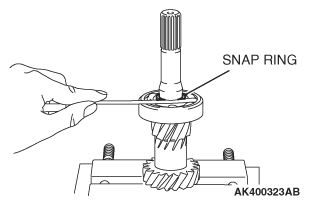

Fig 1: Installing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
