INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

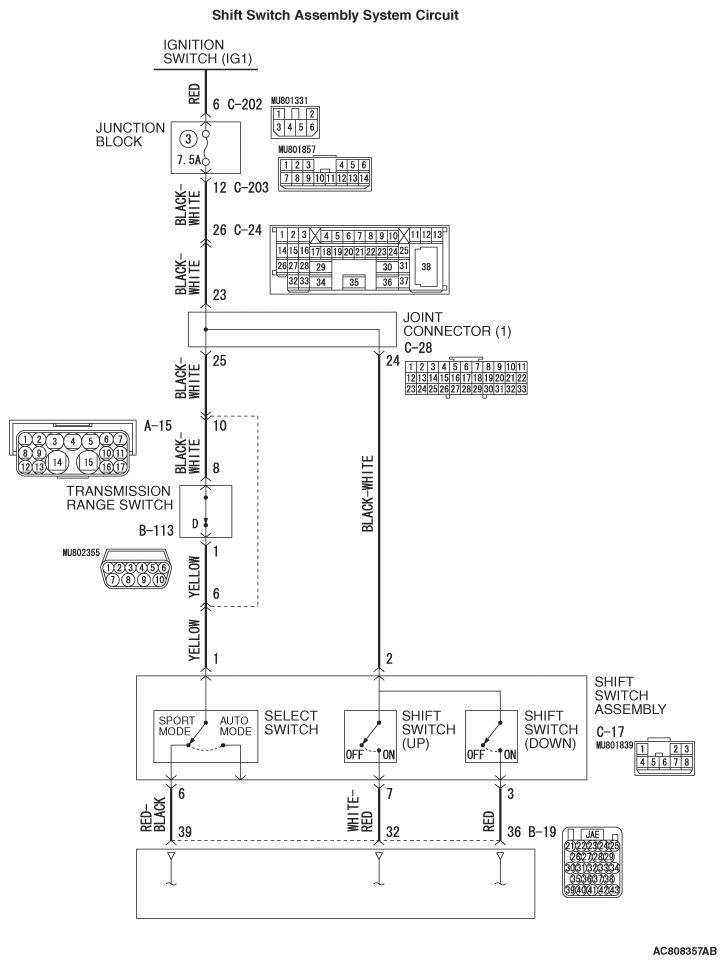

Fig 1: Shift Switch Assembly System Circuit Diagram (1 Of 2)
G06685469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Shift Switch Assembly System Circuit Diagram (2 Of 2)
G06685470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
