Keyless Entry Transmitter: Service and Repair

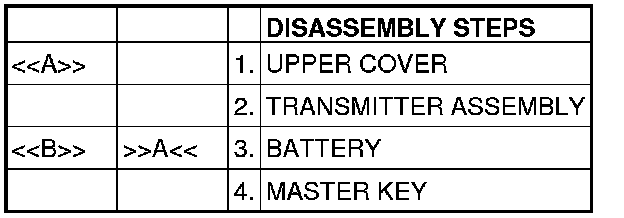

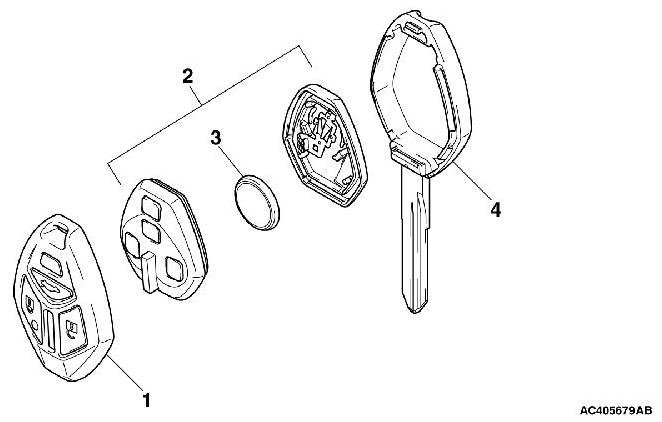

DISASSEMBLY AND ASSEMBLY













DISASSEMBLY SERVICE POINTS

[[A]] UPPER COVER REMOVAL

CAUTION:
To prevent damage to the transmitter, wrap a flat-tipped screwdriver with protective tape before prying.

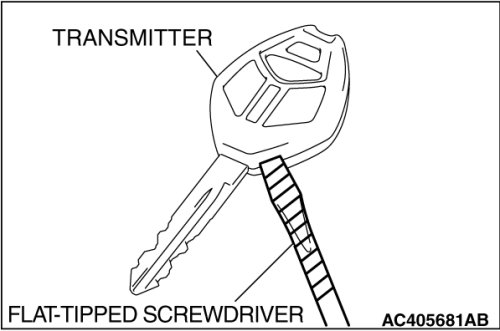

Insert a flat-tipped screwdriver in the area shown, and remove the upper cover by prying it with the screwdriver.

[[B]] BATTERY REMOVAL

CAUTION:

- Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
- To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.

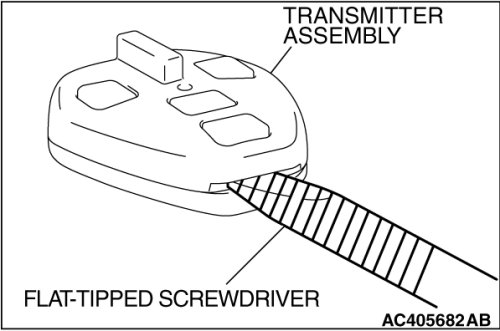

Insert a flat-tipped screwdriver in the area shown, and remove the battery by prying it with the screwdriver.

ASSEMBLY SERVICE POINT

]]A[[ BATTERY INSTALLATION

CAUTION:
Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

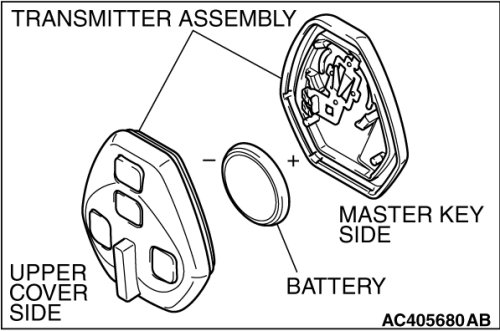

Install a new battery to the transmitter assembly with its (+) side facing towards the master key side.
Battery required for replacement: Coin type battery CR1620
