Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

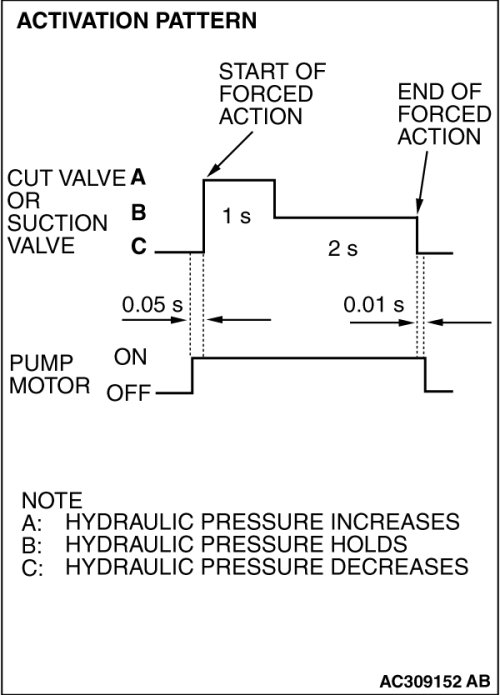

The scan tool activates the following actuators for testing.
NOTE:
If the TCL/ASC-ECU runs down, actuator testing cannot be carried out.

NOTE:
Actuator testing is only possible when the vehicle is stationary.

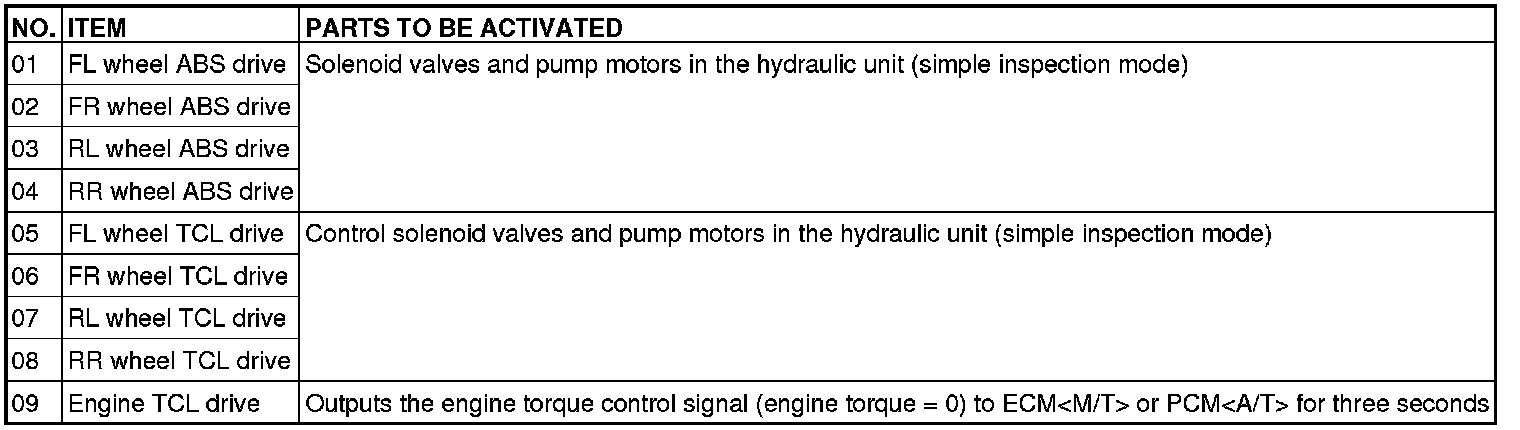

ACTUATOR TEST SPECIFICATIONS
