Data List Reference Table

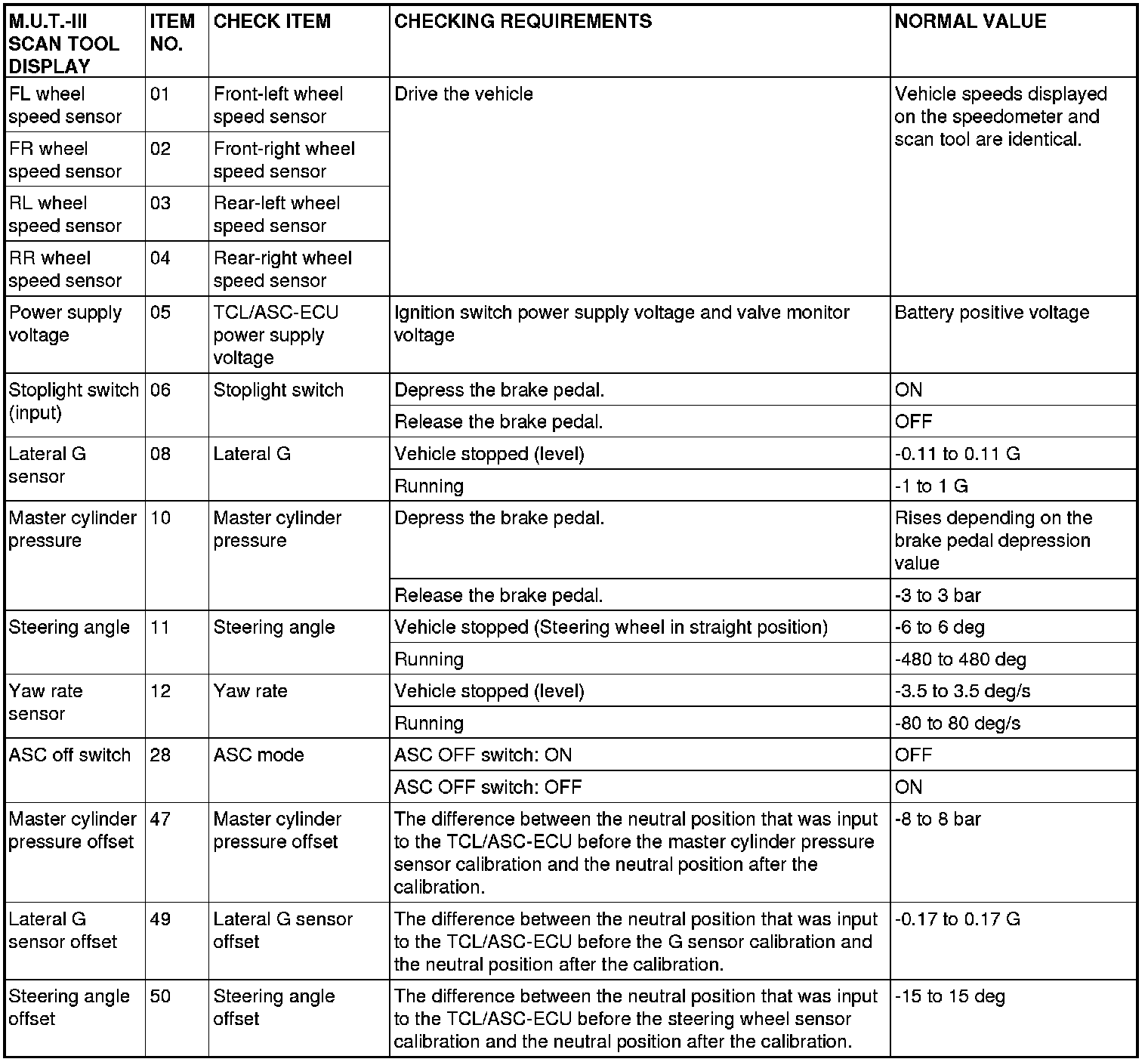

DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the TCL/ASC-ECU input data.
