Firewall

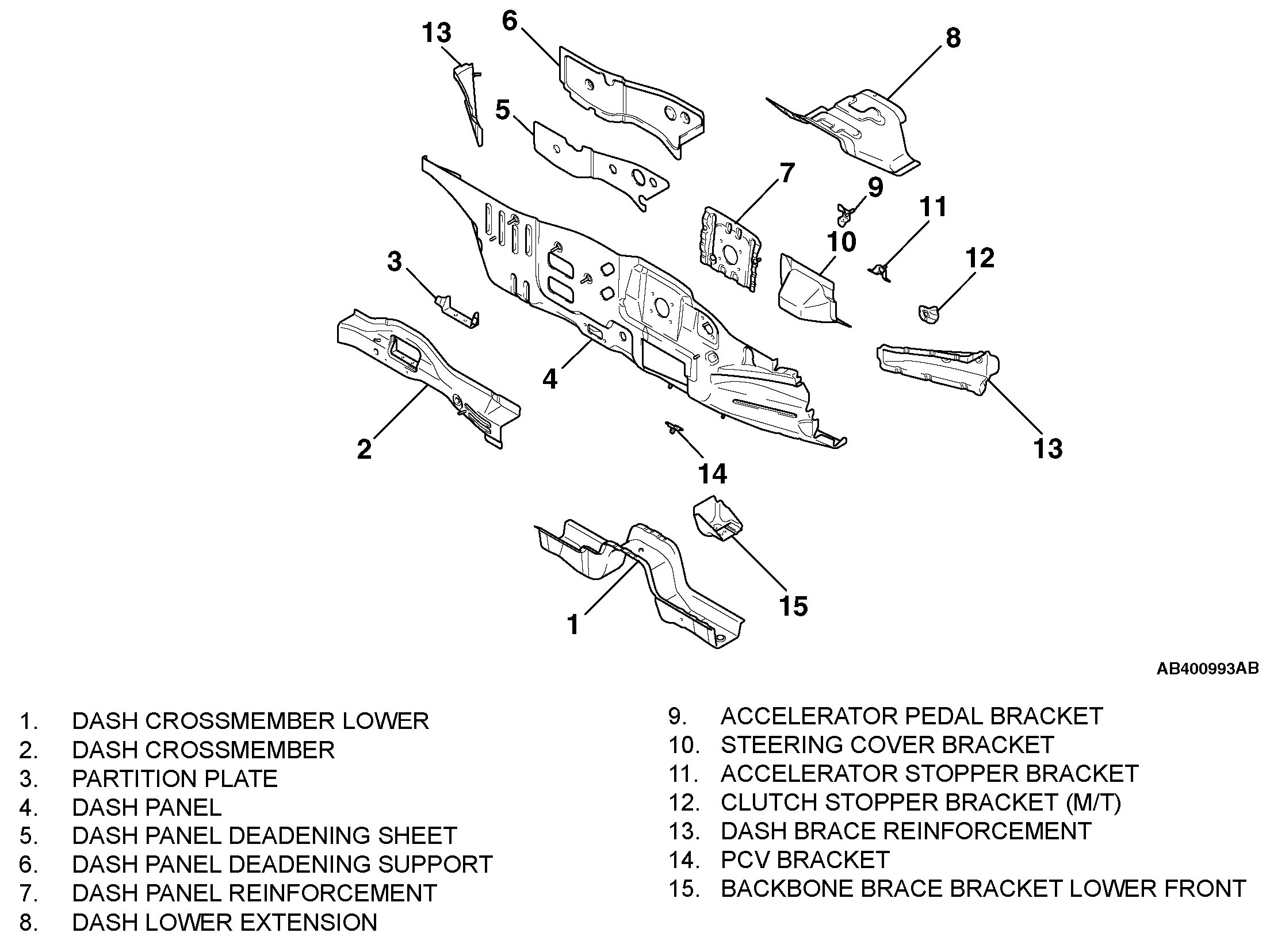

DASH PANEL






- A dash crossmember installed in the chassis is used to disperse energy upon impact efficiently so that cabin deformation is suppressed.
- A dash brace reinforcement has been adopted to improve the bending rigidity.
- Plate thickness of dash panel is increased to suppress cabin deformation and improve sound insulation upon impact.
- A dash panel deadening sheet has been used for the dash panel to suppress noise and vibration from the engine.
