System Relay: Testing and Inspection




POWER RELAY CHECK

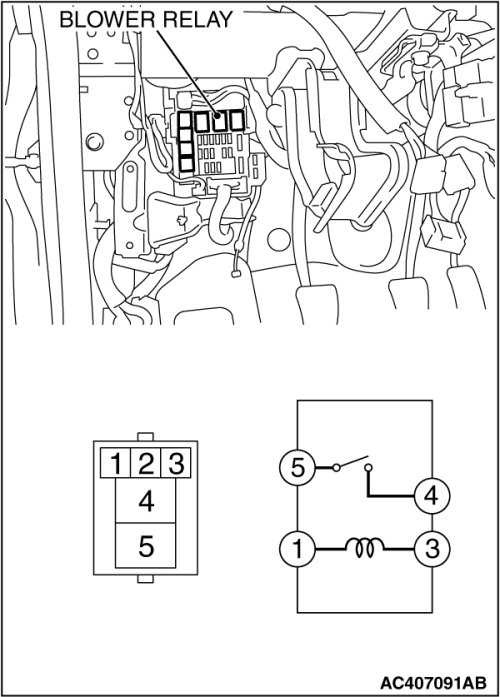

BLOWER RELAY CONTINUITY CHECK

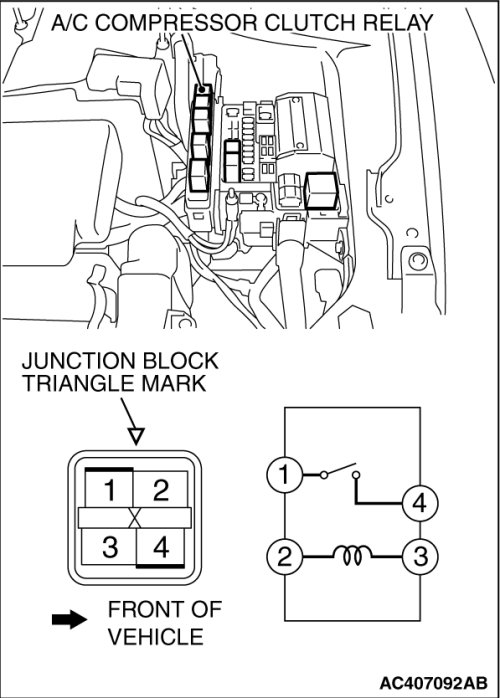

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK

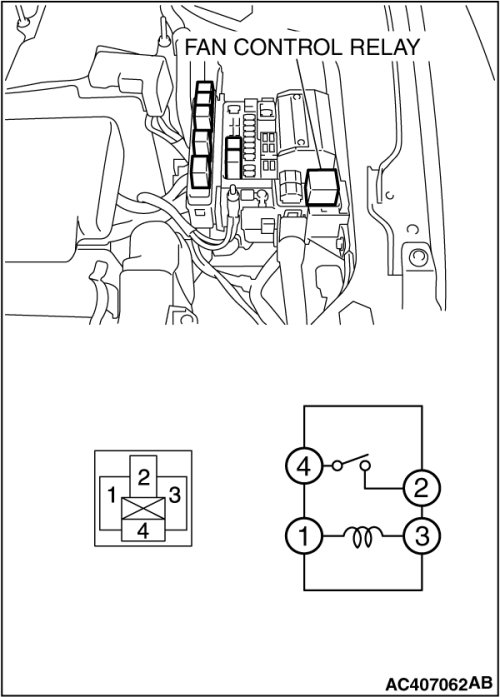

FAN CONTROL RELAY CONTINUITY CHECK

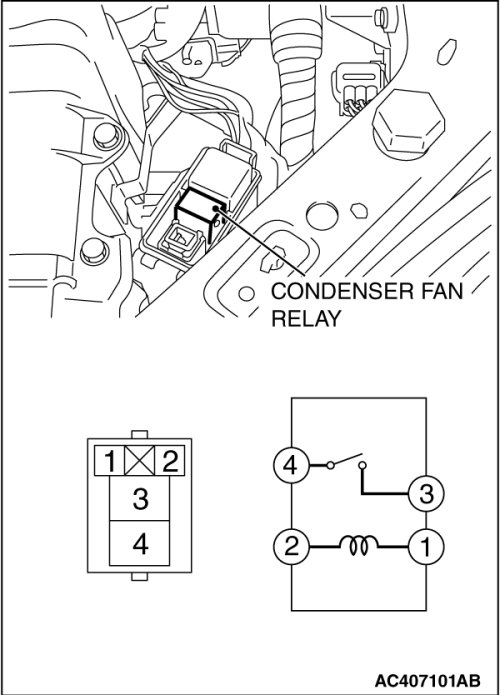

CONDENSER FAN RELAY CONTINUITY CHECK [2.4L ENGINE]
