Removal and Replacement

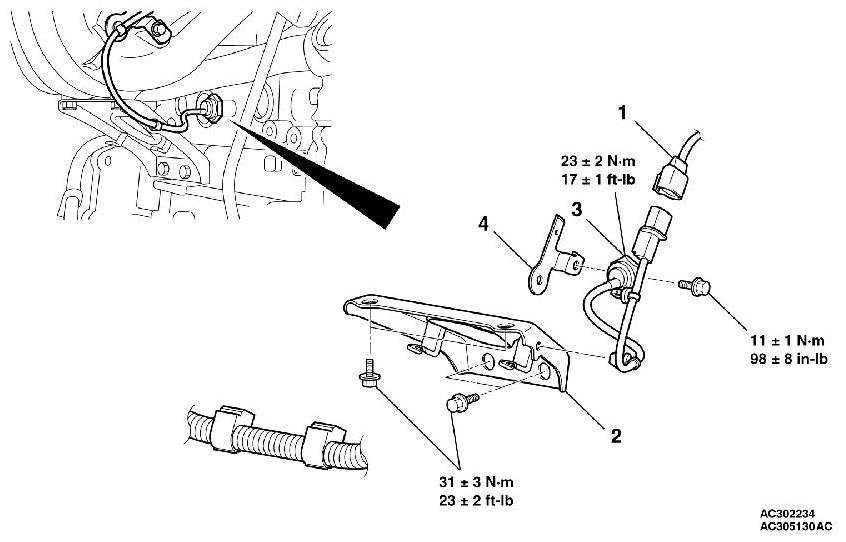

REMOVAL AND INSTALLATION [2.4L ENGINE]

CAUTION:
When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value Initialization Procedure for Learning Value in MFI Engine).









MD998773: Knock Sensor Wrench

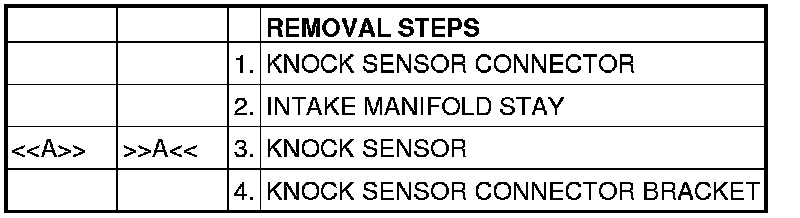

REMOVAL SERVICE POINT

[[A]] KNOCK SENSOR REMOVAL

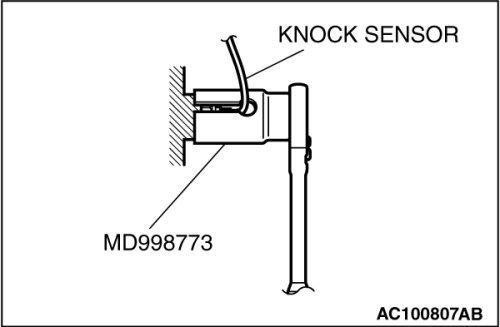

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

]]A[[ KNOCK SENSOR INSTALLATION





Use special tool MD998773 to tighten the knock sensor to the specified torque in the same manner as removal.
Tightening torque: 23± 2Nm (17± 1 ft-lb)
