Data List Reference Table

DATA LIST REFERENCE TABLE

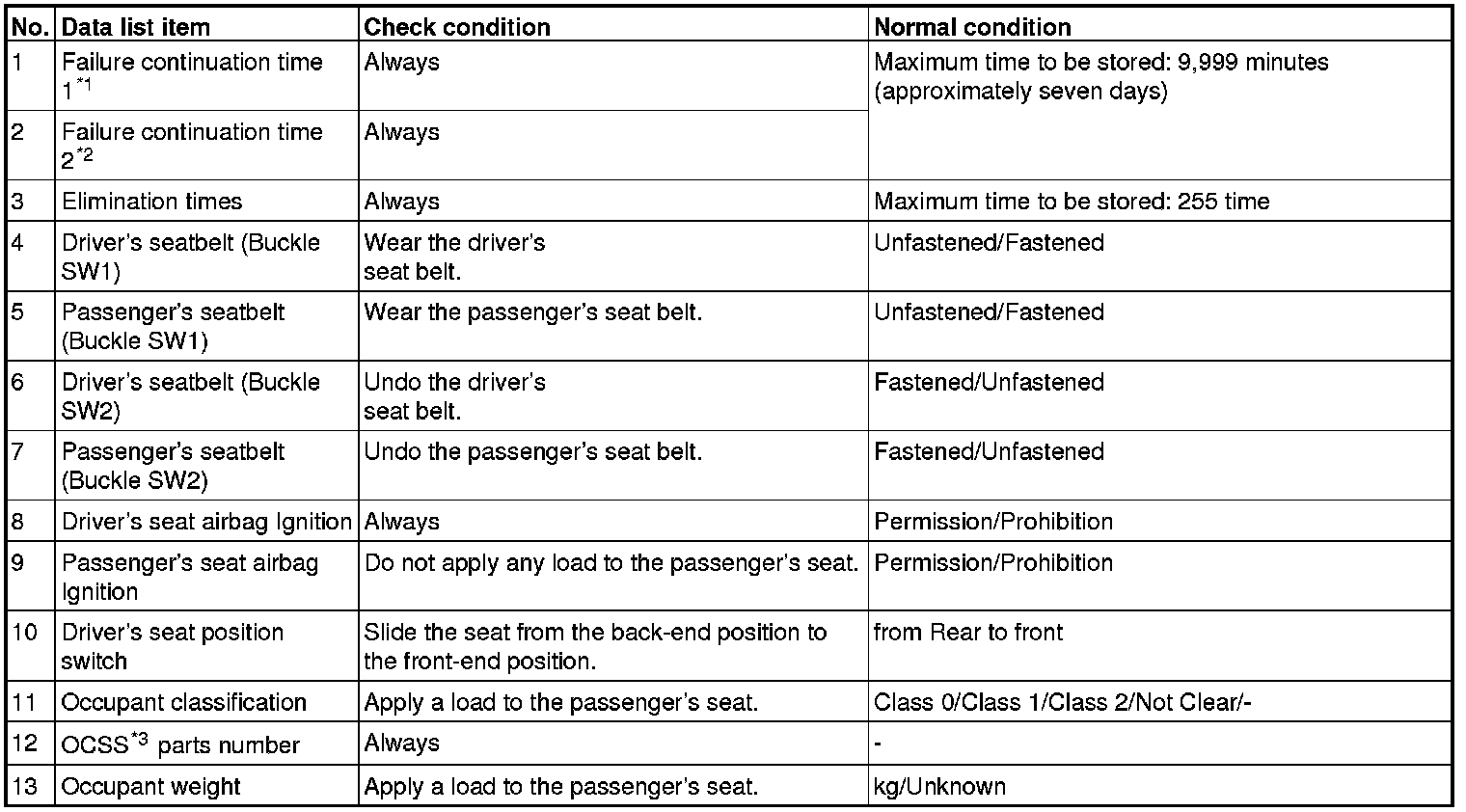

The following items can be read by the scan tool from the SRS-ECU input data.






NOTE:

- *1: indicates the duration from the occurrence of failure to the first ignition signal output.
- *2: indicates the duration from the first collision judgment to the present.
- *3:Occupant Classification Sensing System.
