General Data and Specifications




[ECLIPSE]

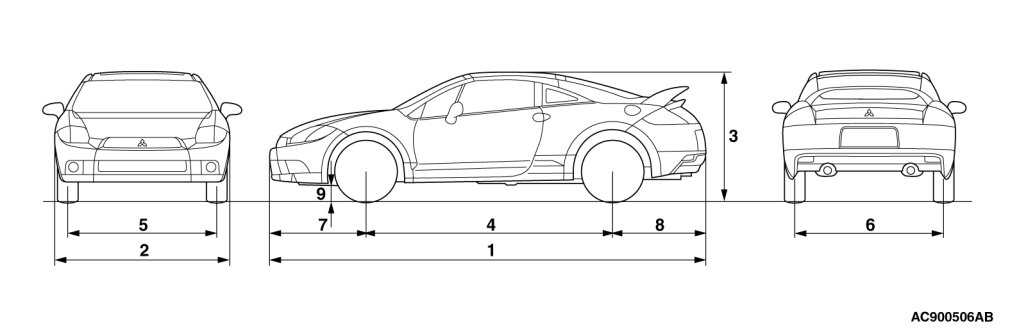

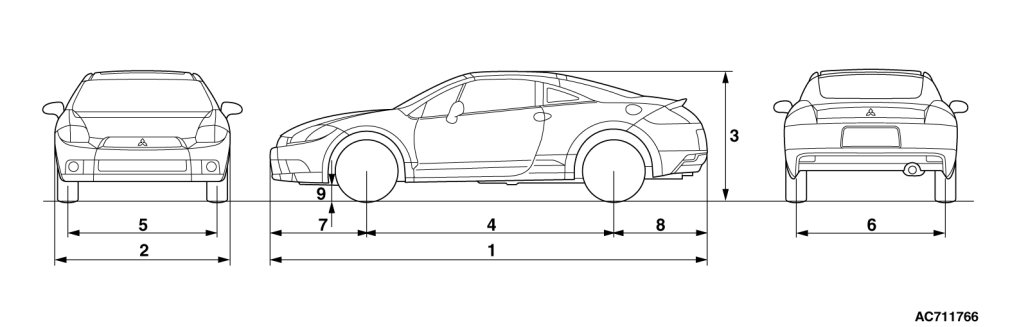

VEHICLES FOR USA AND CANADA

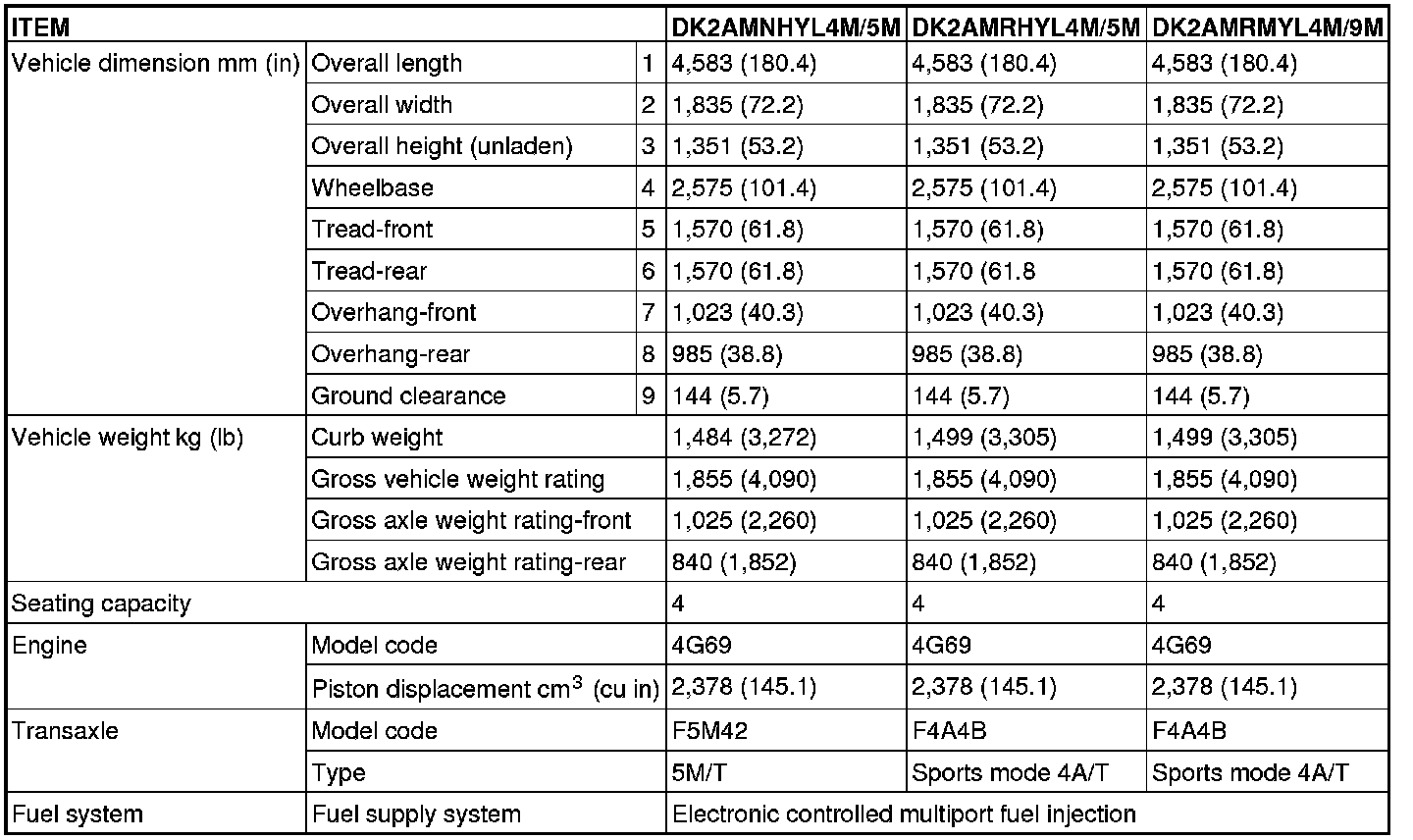

GENERAL SPECIFICATIONS (2.4L ENGINE)

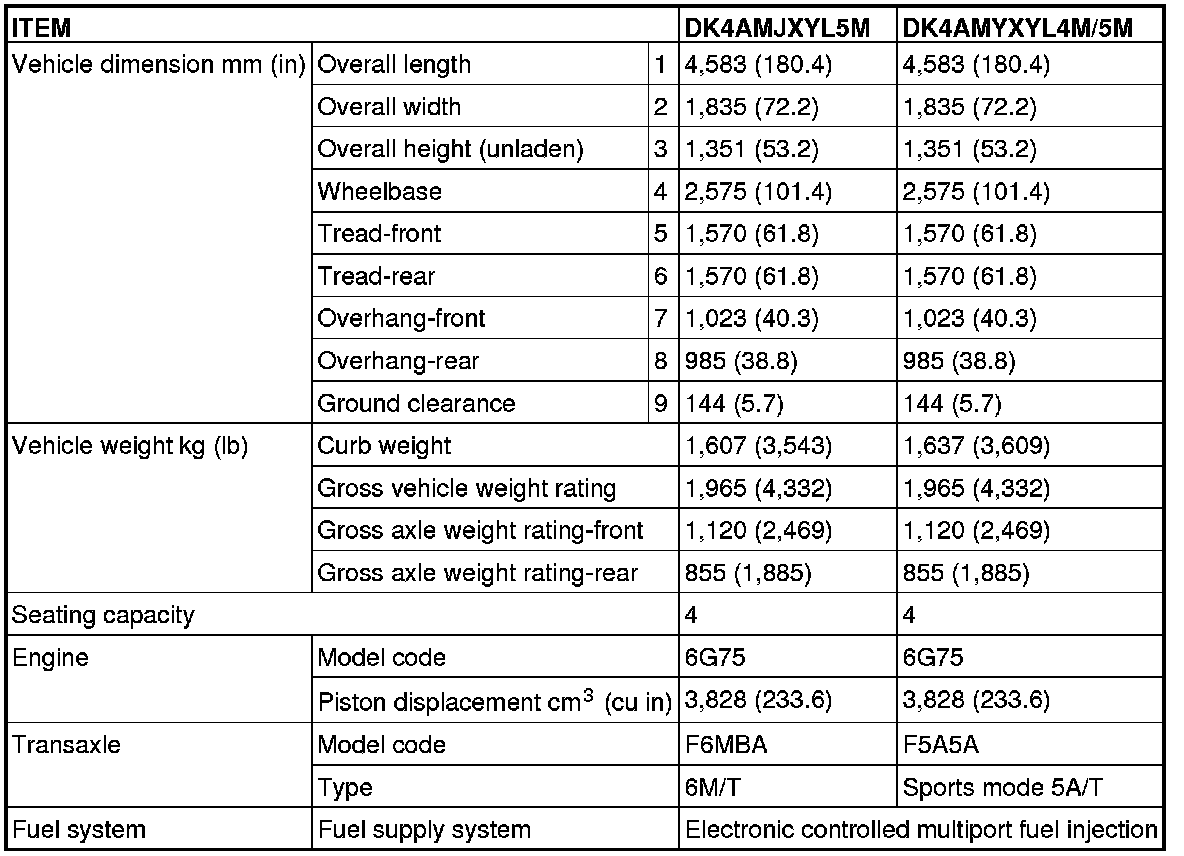

GENERAL SPECIFICATIONS (3.8L ENGINE)

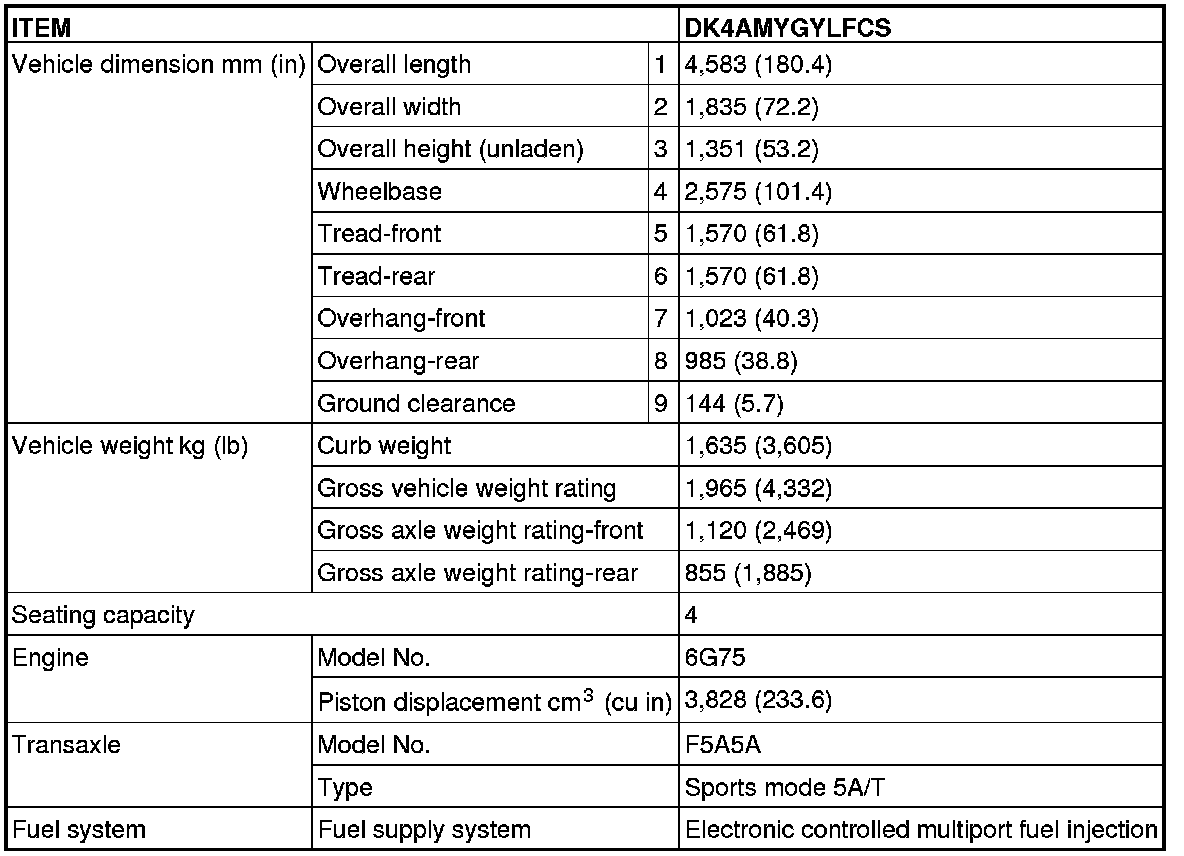

VEHICLES FOR MEXICO
