Ignition Switch: Service and Repair

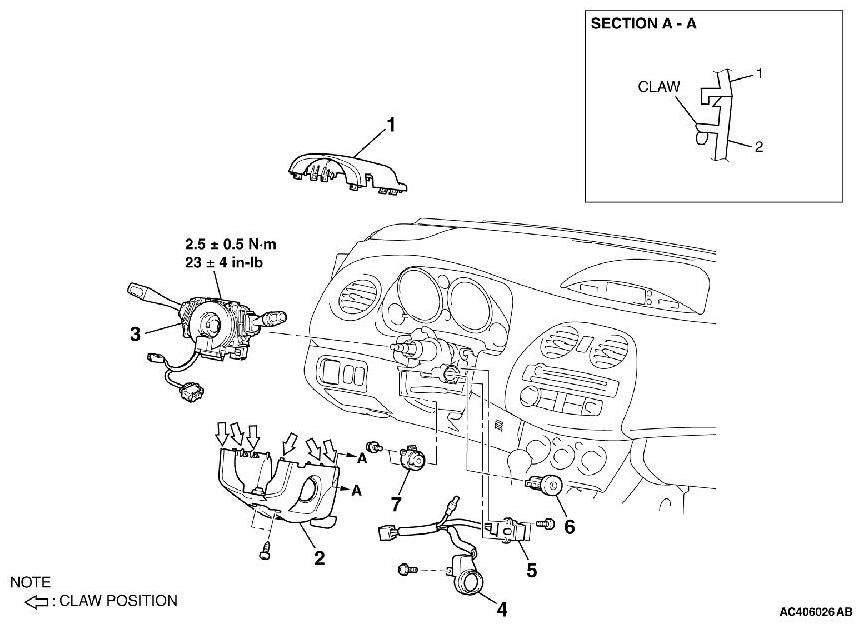

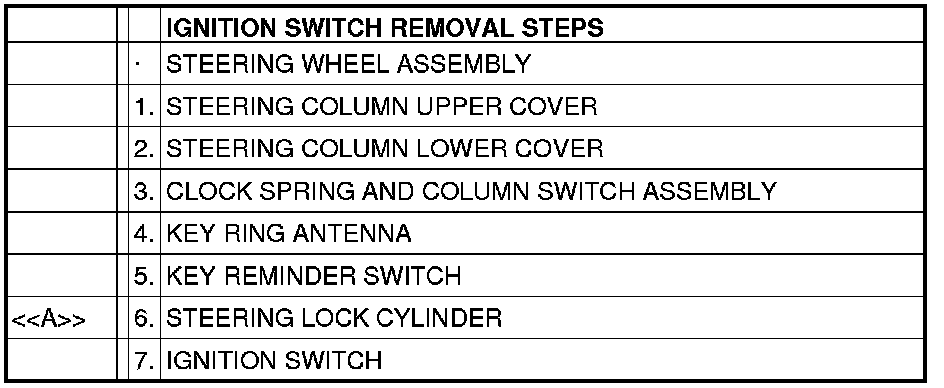

REMOVAL AND INSTALLATION

WARNING:

- Before removing the steering wheel, air bag module assembly and clock spring refer to Service Precautions ( Service Precautions) and Air Bag Module and Clock Spring ( Service and Repair).
- When removing and installing the steering wheel, do not let it bump against the air bag module.

CAUTION:
When the steering lock cylinder is replaced, register the encrypted code. Refer to Encrypted Code Registration Criteria Table.









REMOVAL SERVICE POINTS

[[A]] STEERING LOCK CYLINDER REMOVAL





1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

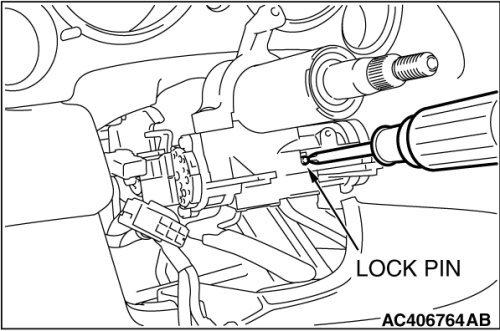

2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
