Diagnostic Result Display Method When Using The "Cruise" Indicator Light

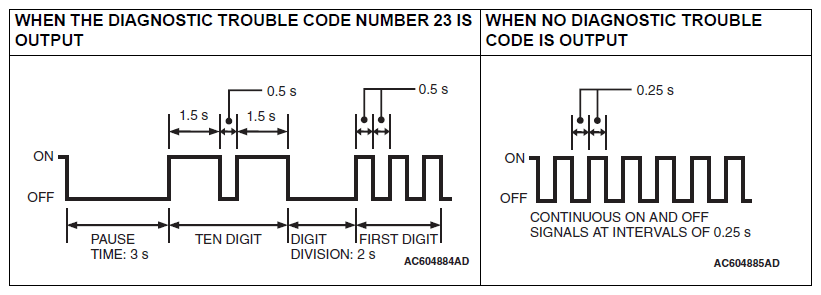

Fig 1: Driving Pattern Of Indicator Light

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
