OEM Component Locations: Grounding

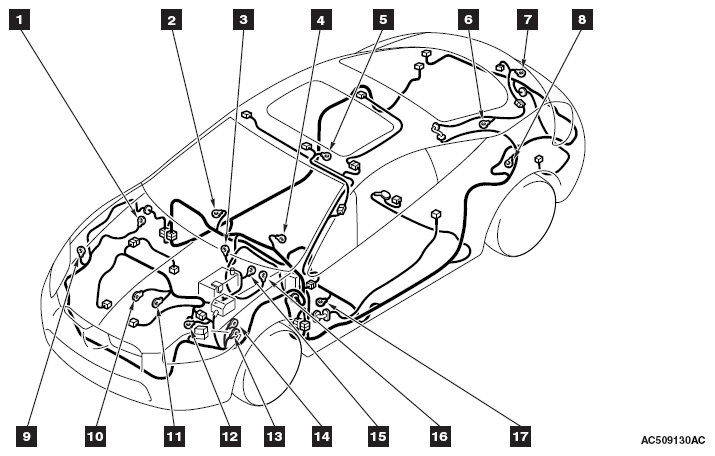

Fig 1: Body Grounding Points Location (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

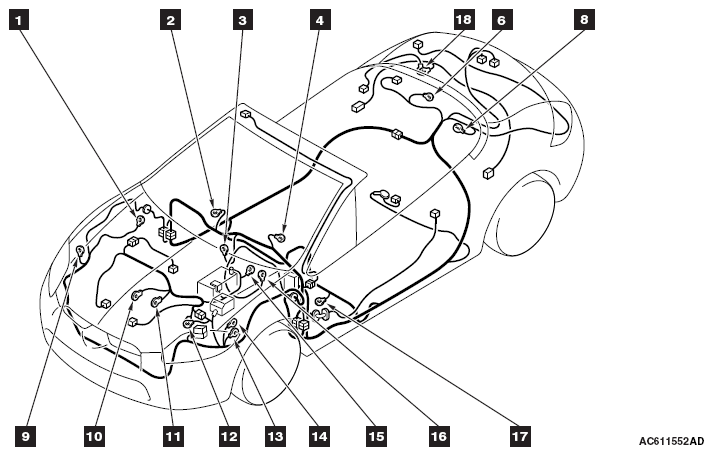

Fig 2: Body Grounding Points Location (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 17 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS .

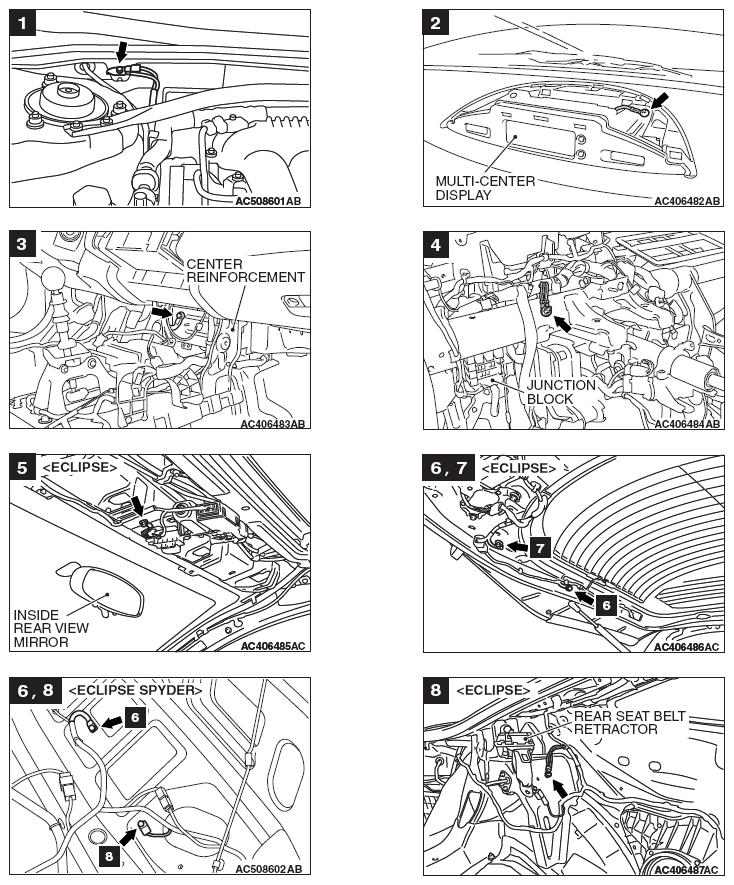

Fig 3: Locating Body Grounding Points (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

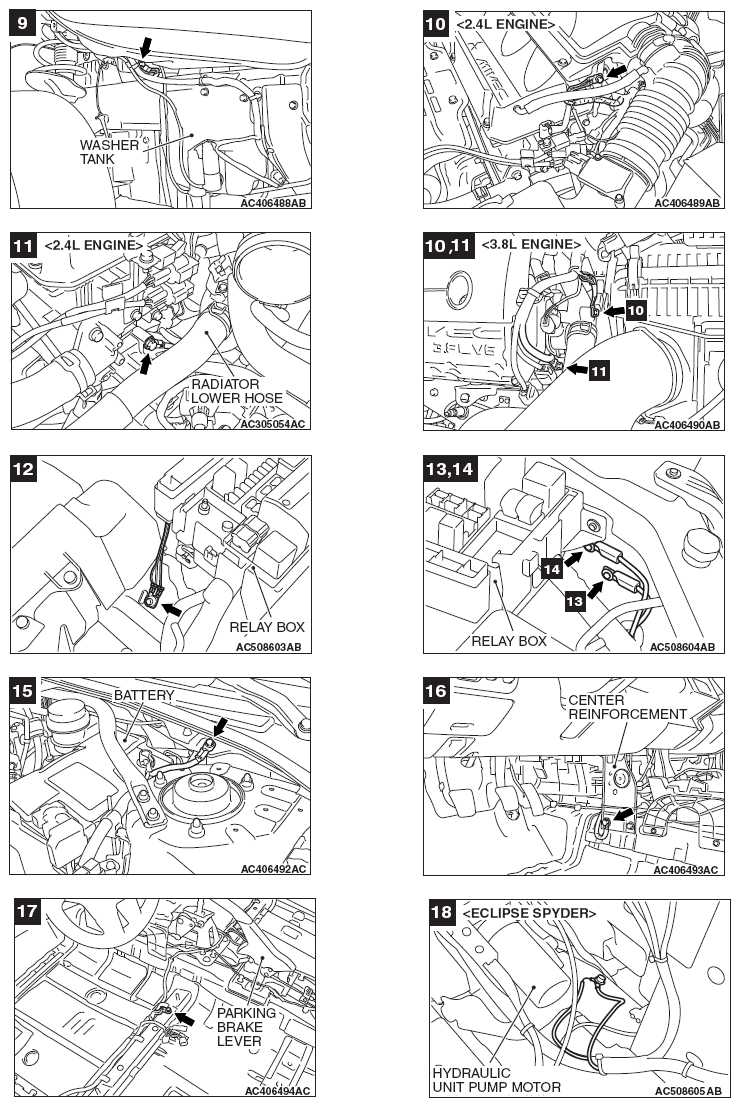

Fig 4: Locating Body Grounding Points (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
