OEM Component Locations: Sensor

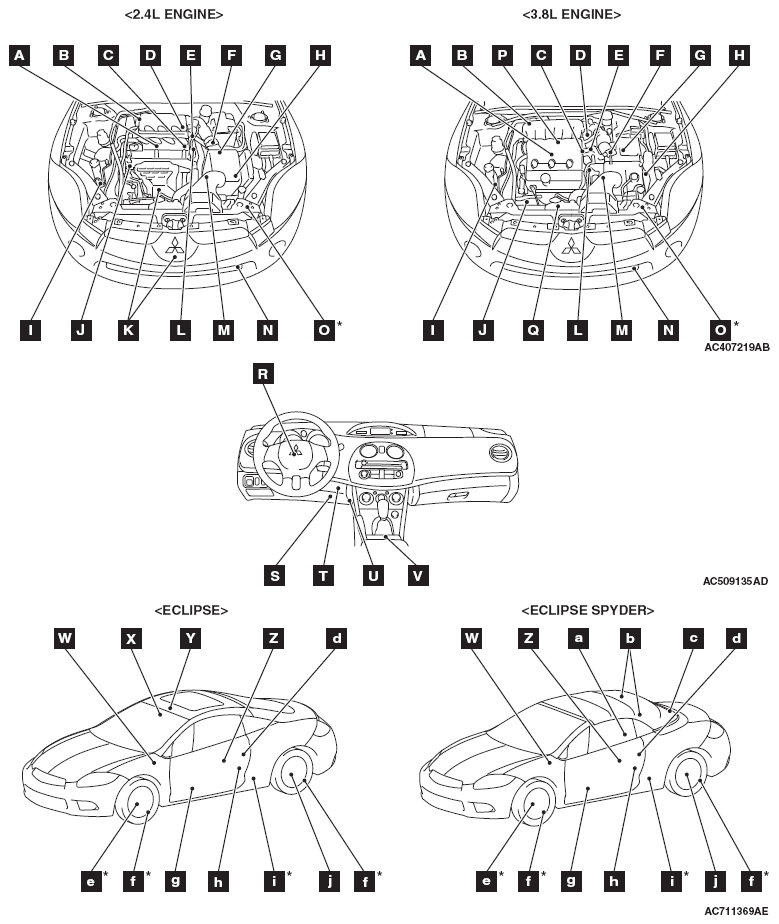

SENSOR SYMBOLS REFERENCE CHART

NAME	SYMBOL

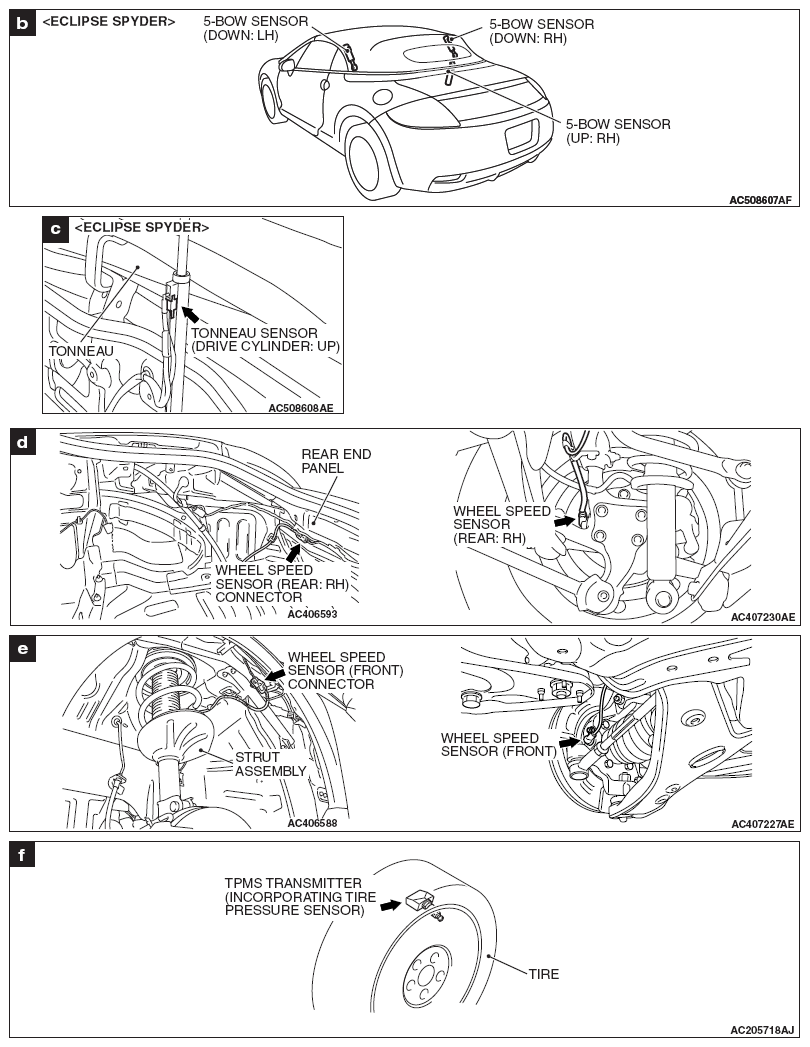

5-Bow sensor (Down: LH) <ECLIPSE SPYDER>	b
5-Bow sensor (Down: RH) <ECLIPSE SPYDER>	b
5-Bow sensor (Up: RH) <ECLIPSE SPYDER>	b
A/C pressure sensor	I
A/T control solenoid valve assembly (Incorporating transmission fluid temperature sensor)	H
Accelerator pedal position sensor	S
Air thermo sensor	U
Ambient temperature sensor <A/C>	N
Ambient temperature sensor <Multi-center display>	N
Camshaft position sensor	L

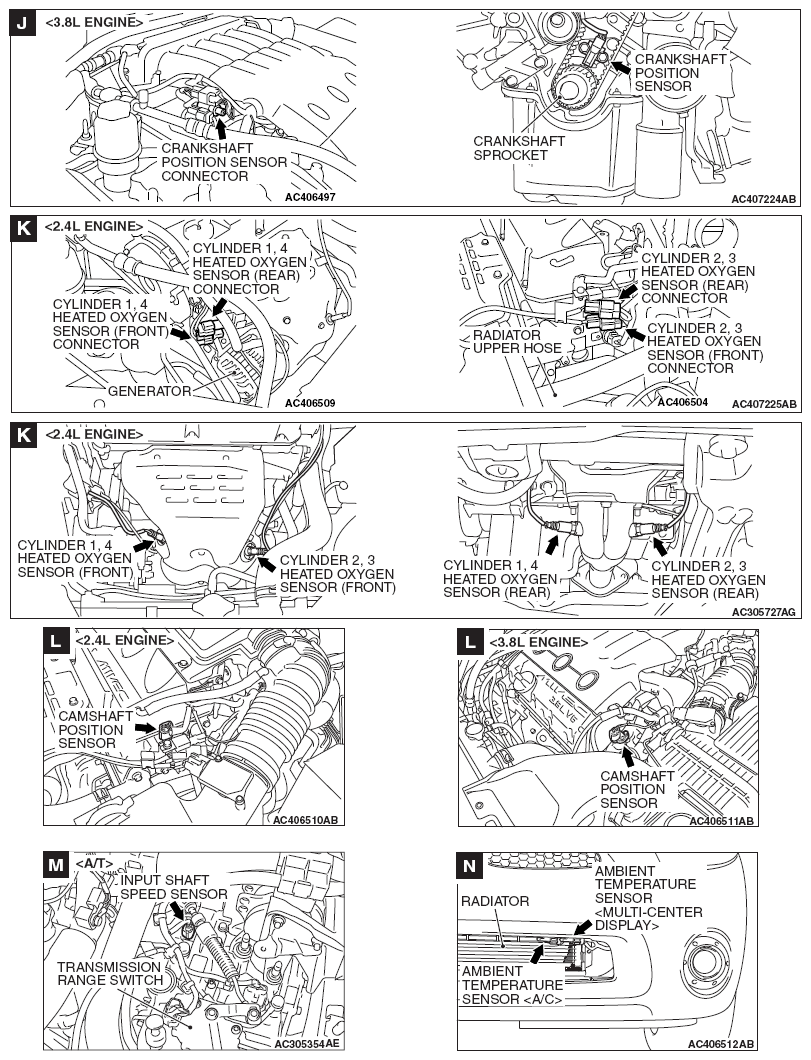

Crankshaft position sensor	J
Cylinder 1, 4 heated oxygen sensor (front) <2.4L Engine>	K
Cylinder 1, 4 heated oxygen sensor (rear) <2.4L Engine>	K
Cylinder 2, 3 heated oxygen sensor (front) <2.4L Engine>	K
Cylinder 2, 3 heated oxygen sensor (rear) <2.4L Engine>	K

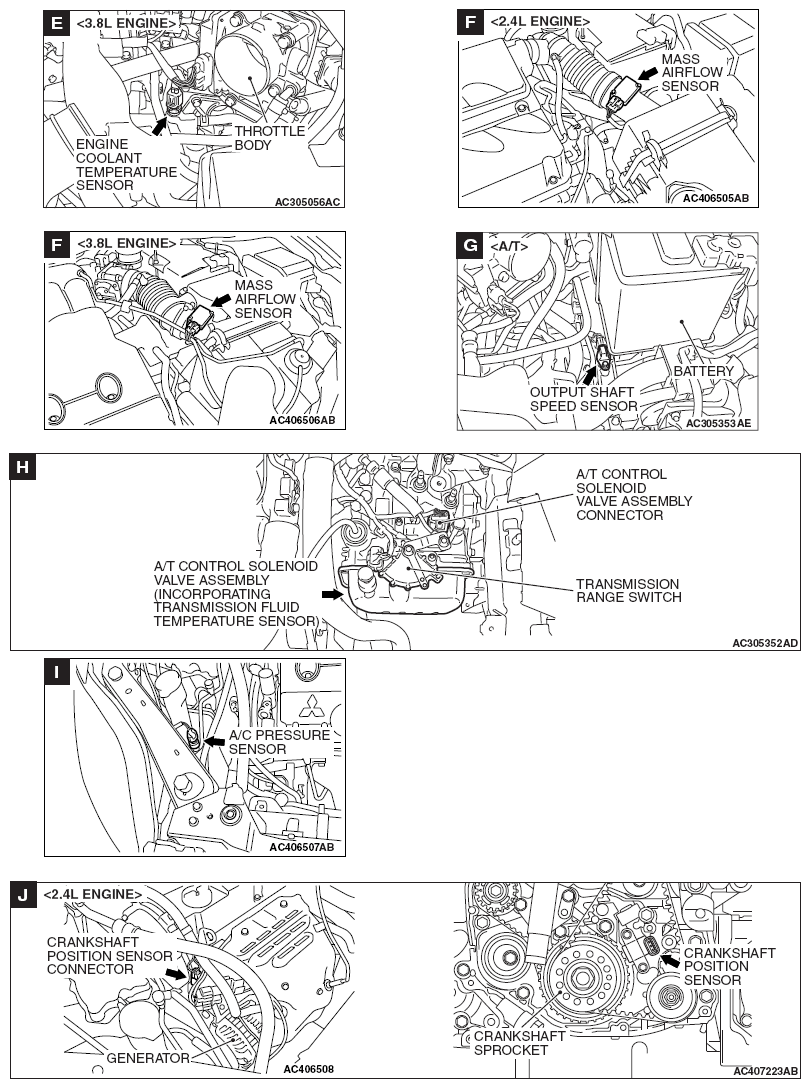

Engine coolant temperature sensor	E

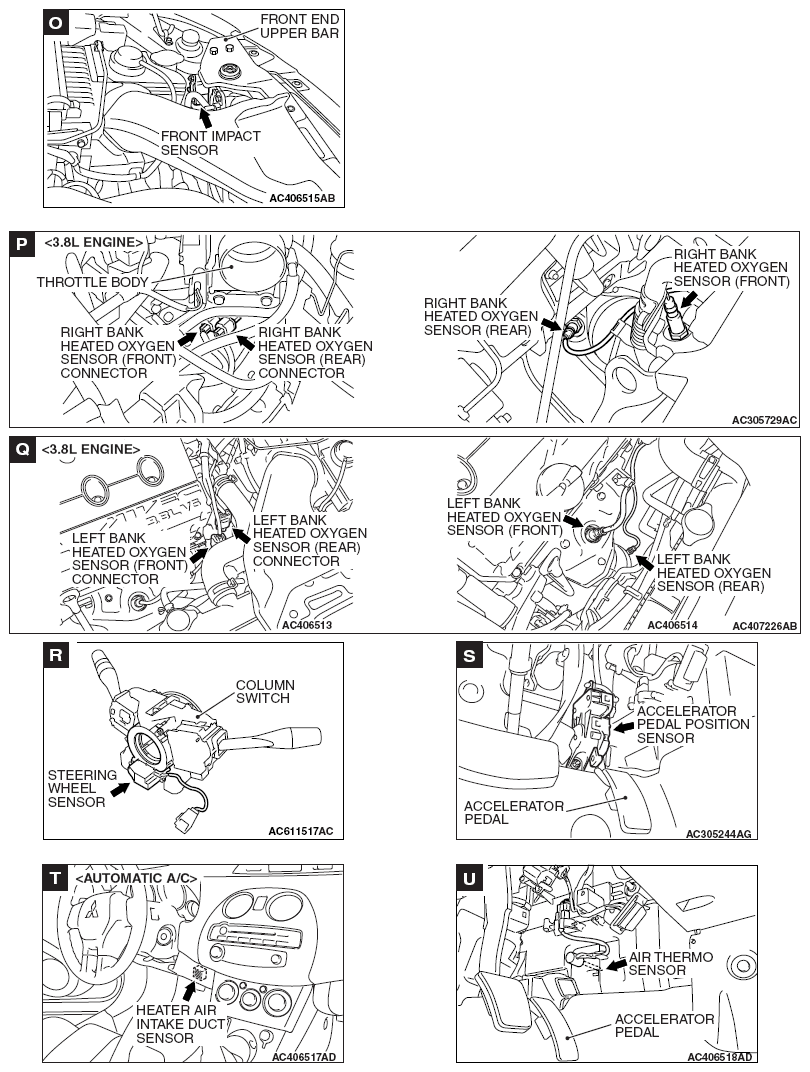

Front impact sensor	O
Front light sensor <Automatic anti-dazzling mirror>	X
Fuel level sensor (sub)	Z
Fuel pump module (Incorporating fuel level sensor (main) and fuel tank temperature sensor)	h
Fuel tank differential pressure sensor	h

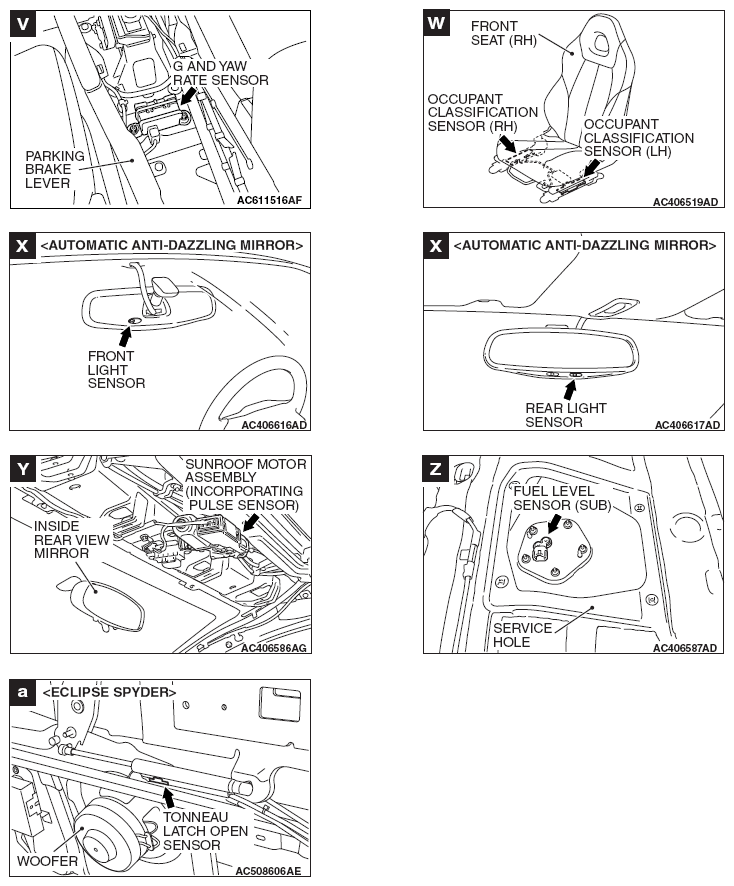

G and yaw rate sensor	V
Heater air intake duct sensor <Automatic A/C>	T
Input shaft speed sensor <A/T>	M

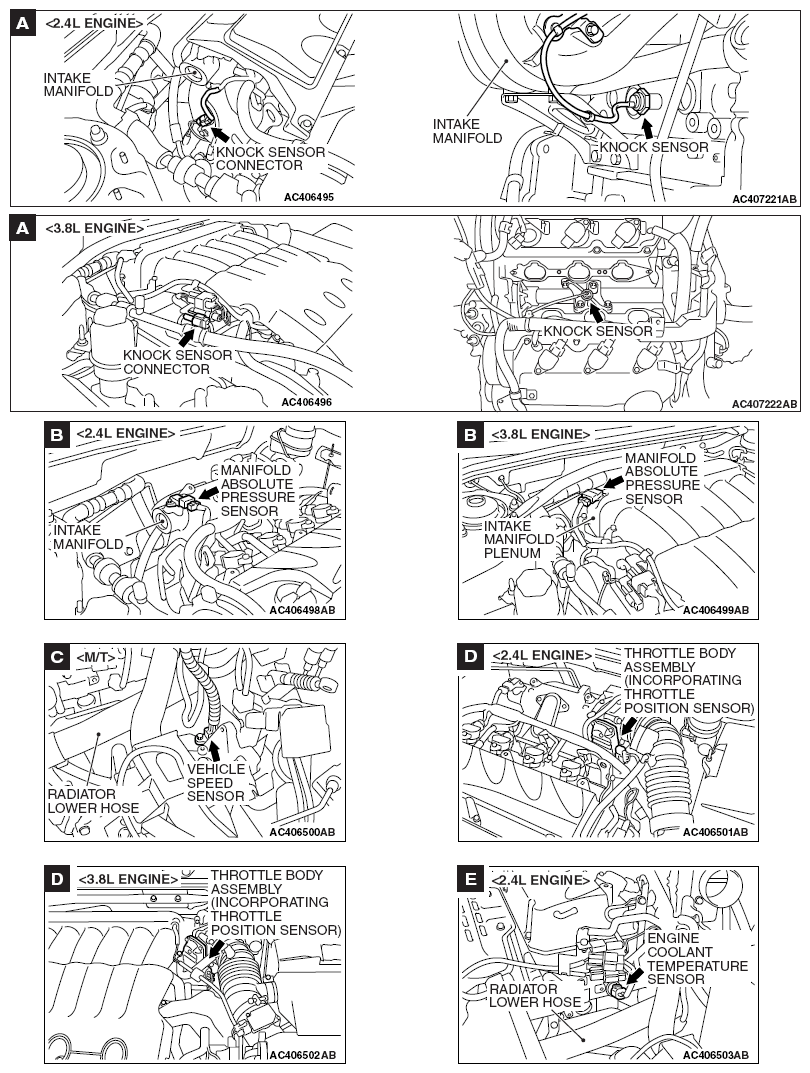

Knock sensor	A
Left bank heated oxygen sensor (front) <3.8L Engine>	Q
Left bank heated oxygen sensor (rear) <3.8L Engine>	Q
Manifold absolute pressure sensor	B
Mass airflow sensor	F
Occupant classification sensor (LH), (RH)	W
Output shaft speed sensor <A/T>	G
Rear light sensor <Automatic anti-dazzling mirror>	X
Right bank heated oxygen sensor (front) <3.8L Engine>	P
Right bank heated oxygen sensor (rear) <3.8L Engine>	P

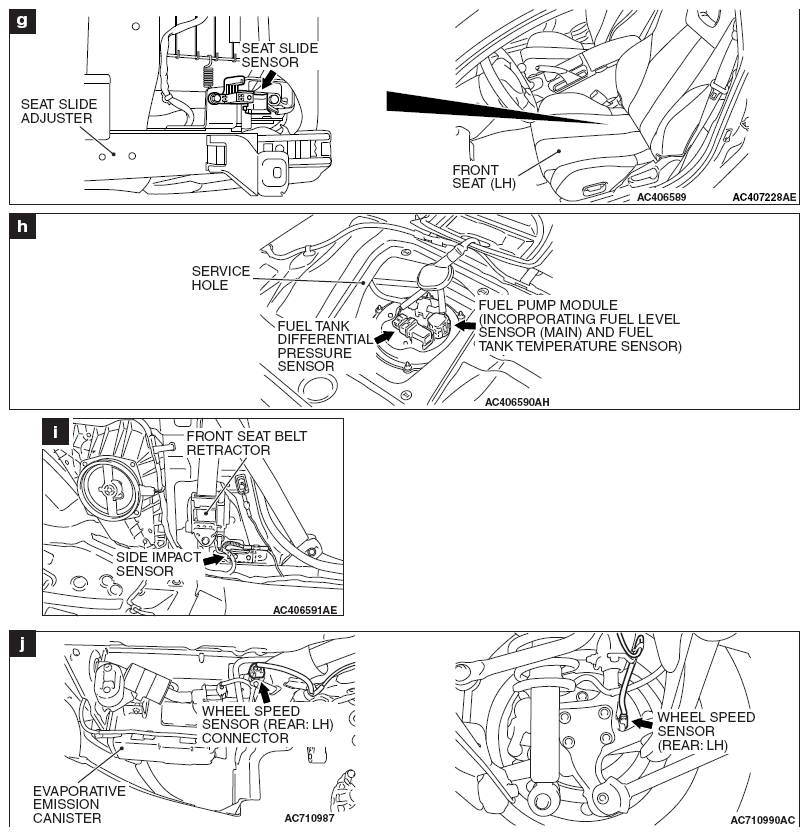

Seat slide sensor	g
Side impact sensor	i
Steering wheel sensor	R
Sunroof motor assembly (Incorporating pulse sensor)	Y
Throttle body assembly (Incorporating throttle position sensor)	D
Tonneau latch open sensor <ECLIPSE SPYDER>	a
Tonneau sensor (Drive cylinder: Up) <ECLIPSE SPYDER>	c
TPMS transmitter (Incorporating tire pressure sensor)	f
Vehicle speed sensor <M/T>	C
Wheel speed sensor (front)	e
Wheel speed sensor (rear: LH)	j
Wheel speed sensor (rear: RH)	d
