<Fuel Pump Module>

NOTE: For the removal and installation procedures, refer to the FUEL PUMP MODULE REPLACEMENT PROCEDURE  in On-vehicle Service.

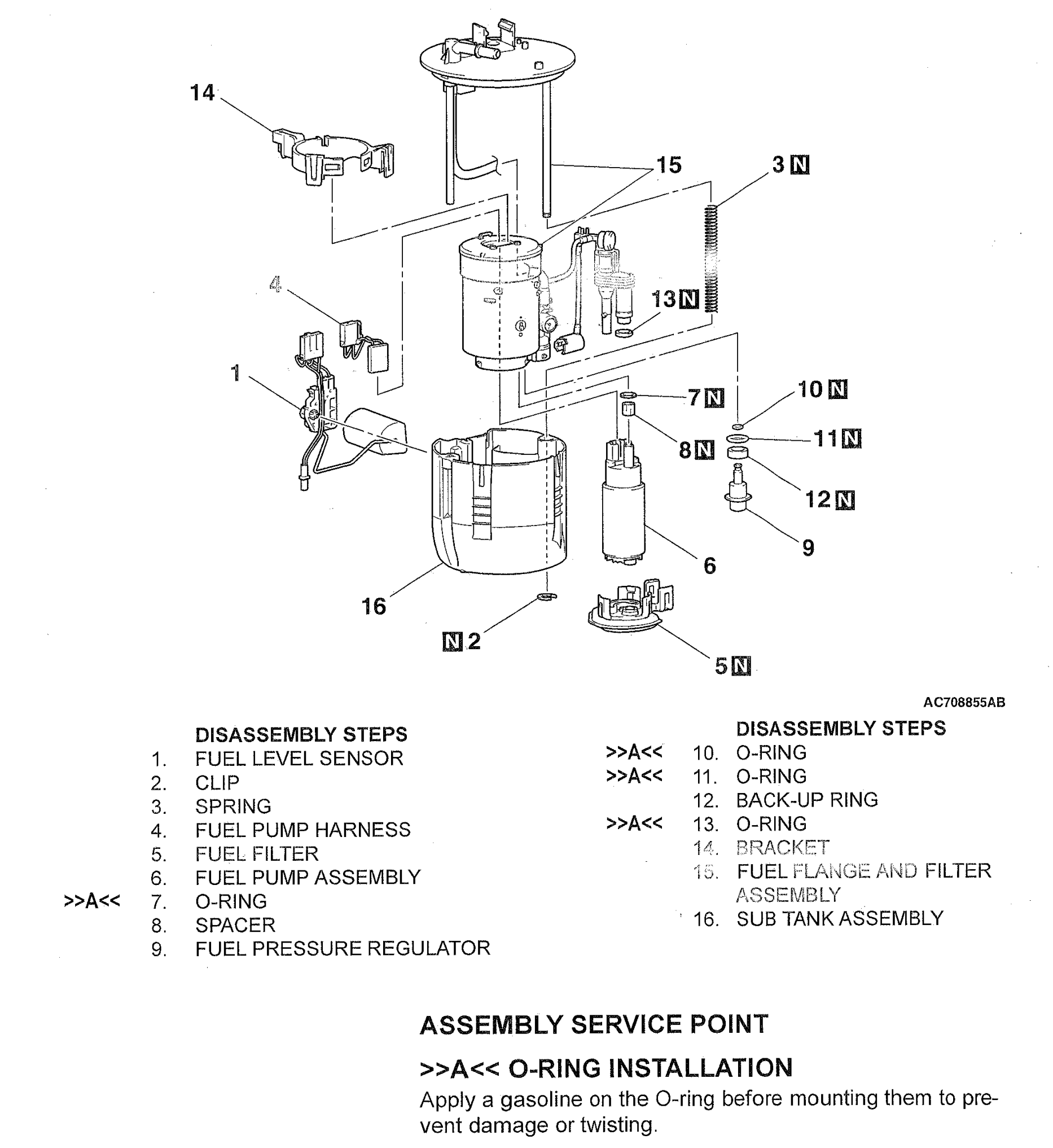

Fig 1: Fuel Pump Module Assembly & Disassembly
G00505355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
