Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

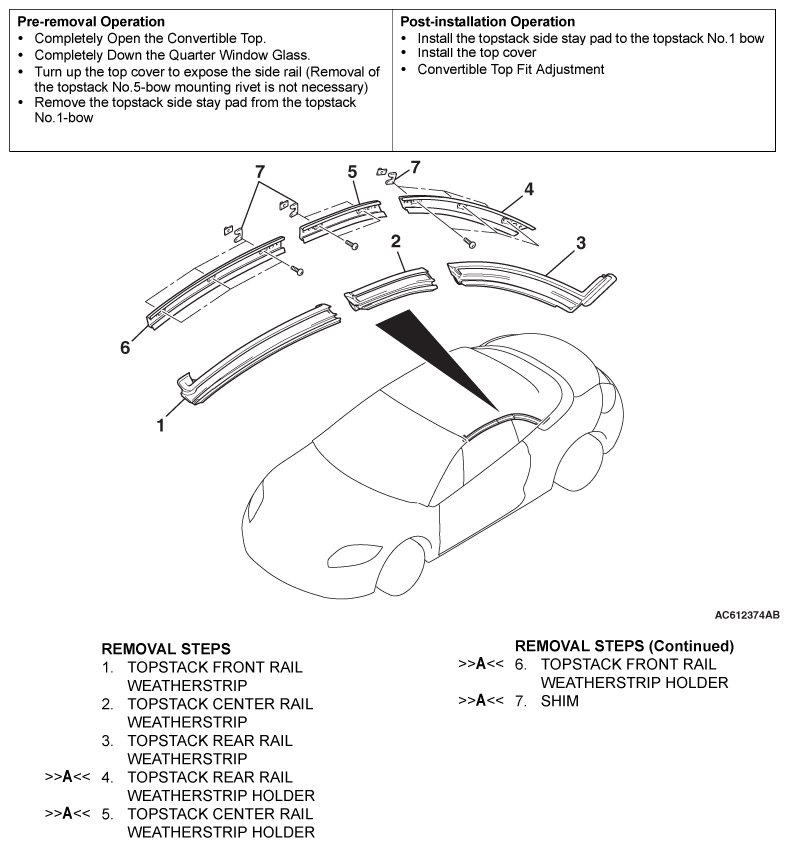

Fig 1: Removal/Installation Of Topstack Rail Weatherstrip

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB992171: Retainer adjust block set
- MB992172: Retainer adjust block A
- MB992173: Retainer adjust block B
MB992186: Retainer setting hanger LH
MB992187: Retainer setting hanger RH
