Disassembly And Assembly

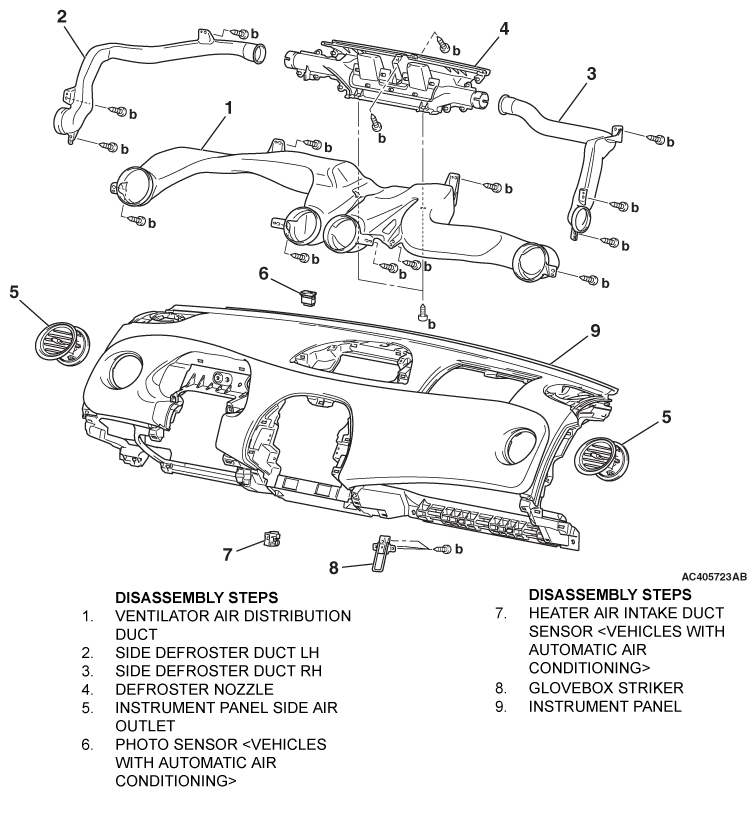

Fig 1: Identifying Instrument Panel, Heater Air Intake Duct Sensor And Glovebox Striker
G06686737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
