DTC 15 : Auto-cruise Control Switch System: Notes

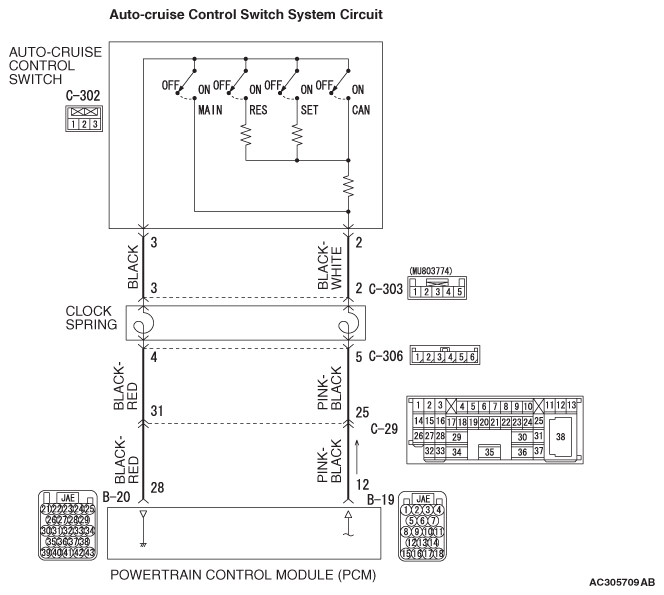

Fig 1: Auto-cruise Control Switch System Circuit
G06716350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

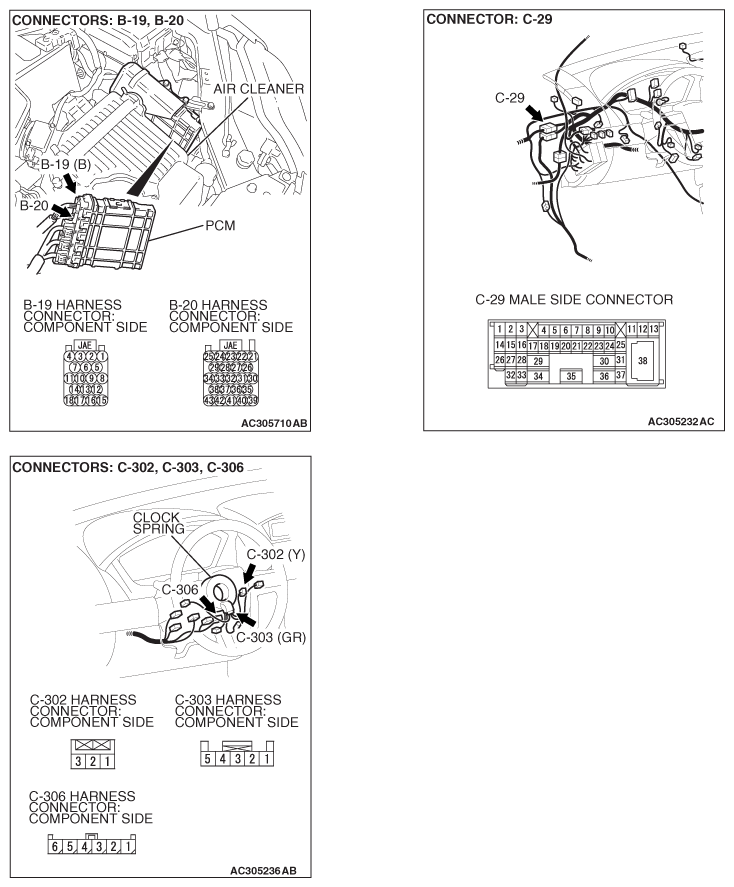

Fig 2: Locating Connectors With Terminals Layout
G06716351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
