Rear View Camera Image Is not Correctly Displayed.: Notes

CAUTION: Before replacing the rear view camera or multi-center display, ensure that the power supply circuit and the ground circuit are normal. (Check that the voltage is 10 V or more.)

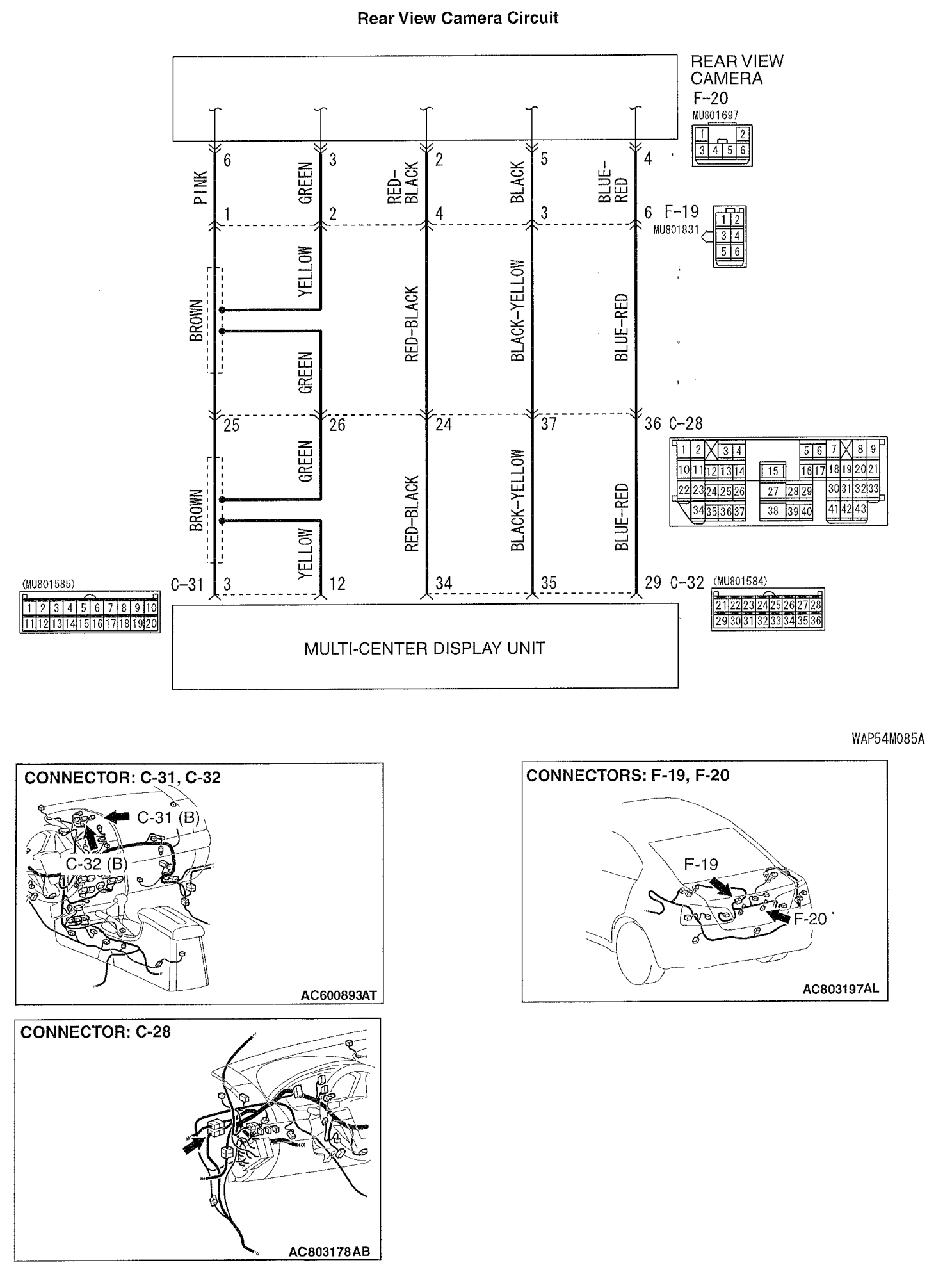

Fig 1: Rear View Camera Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
