Diagnosis Service Mode Function: Notes

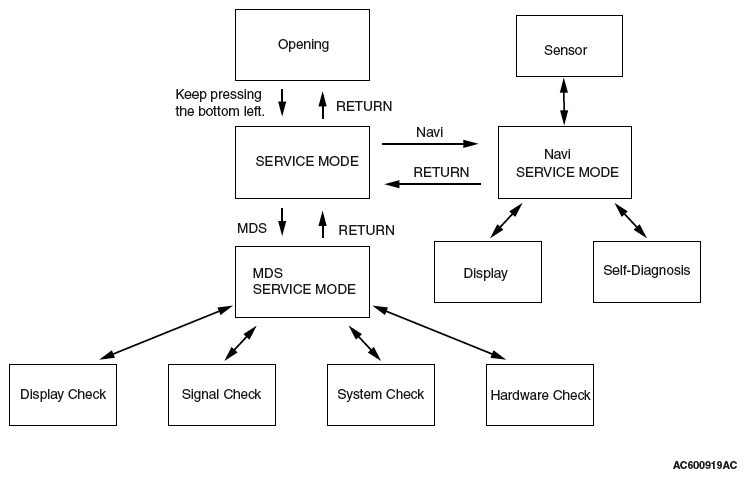

The multi-center display is equipped with the functions below as the diagnosis service mode function.

Function			Contents
MDS (multi-center display) SERVICE MODE	Display check (Image check menu mode)	Color bar	Performs the each image check.
		Gray scale
		White window
		Navi
		Rear view
		Red
		Green
		Blue
		White
		Black
	Signal check (Vehicle signal check mode)		Displays the current vehicle status.
	System check (System check menu)	Connect check	Displays the connection status for units and sensors.
		Version check	Displays the version information of each unit.
		Initialize	Initialization of microcomputer RAM, EEPROM
	Hardware check (Hardware check menu)	Touch switch	Touch switch check
		Sound check	Sound output check
		Self test	RTC (Real Time Clock: Clock IC), EEPROM check
NAVI SERVICE MODE	Display	Color bar	Performs the each image check.
		Hatching
		Gray scale
		Color screen
	Self-diagnosis	Circuit check	Displays circuit check result
		Signal check	Displays signal check result
		GPS time setting	GPS reception time display setting
		Test tone	Diagnoses test tone
	Sensor	Displays sensor information and clears the value.
