DTC B1702: Reception Error Of Encrypted Code: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

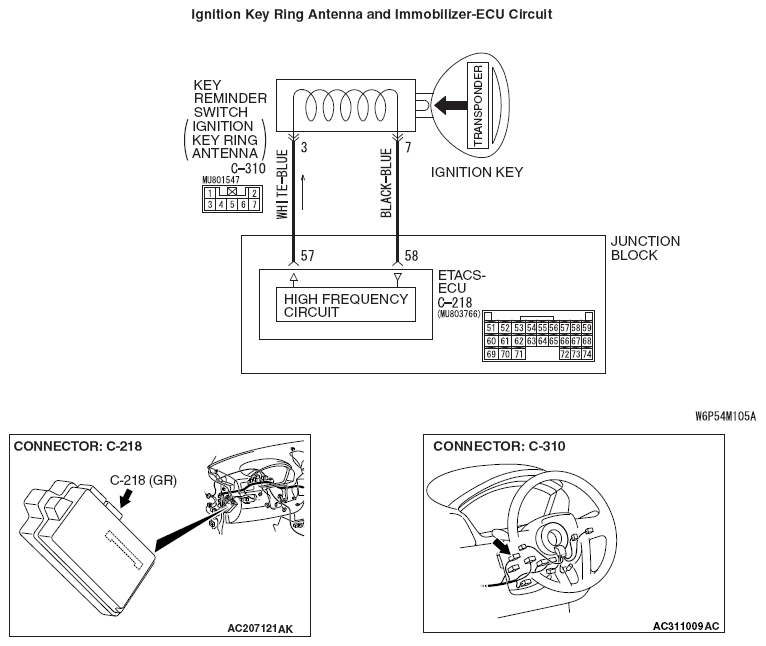

Fig 1: Ignition Key Ring Antenna & Immobilizer-ECU Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
