INSPECTION PROCEDURE M-7: Column Switch: ETACS-ECU Does Not Receive Any Signal From The Variable Intermittent Wiper Control Switch: Notes

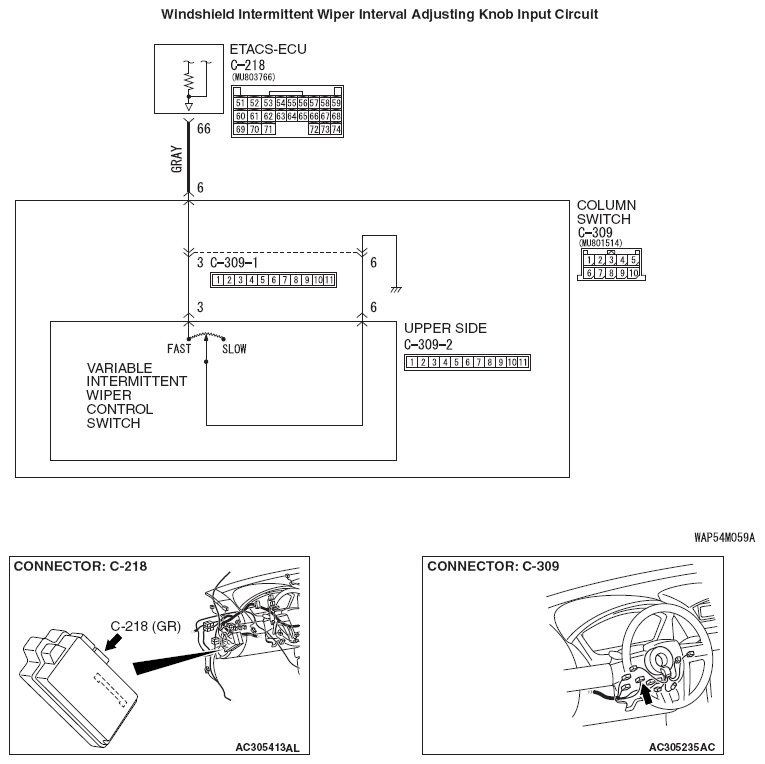

Fig 1: Windshield Intermittent Wiper Interval Adjusting Knob Input Circuit
G06712508Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
