INSPECTION PROCEDURE 1: The Multi-Center Display Does Not Show Any Information.: Notes

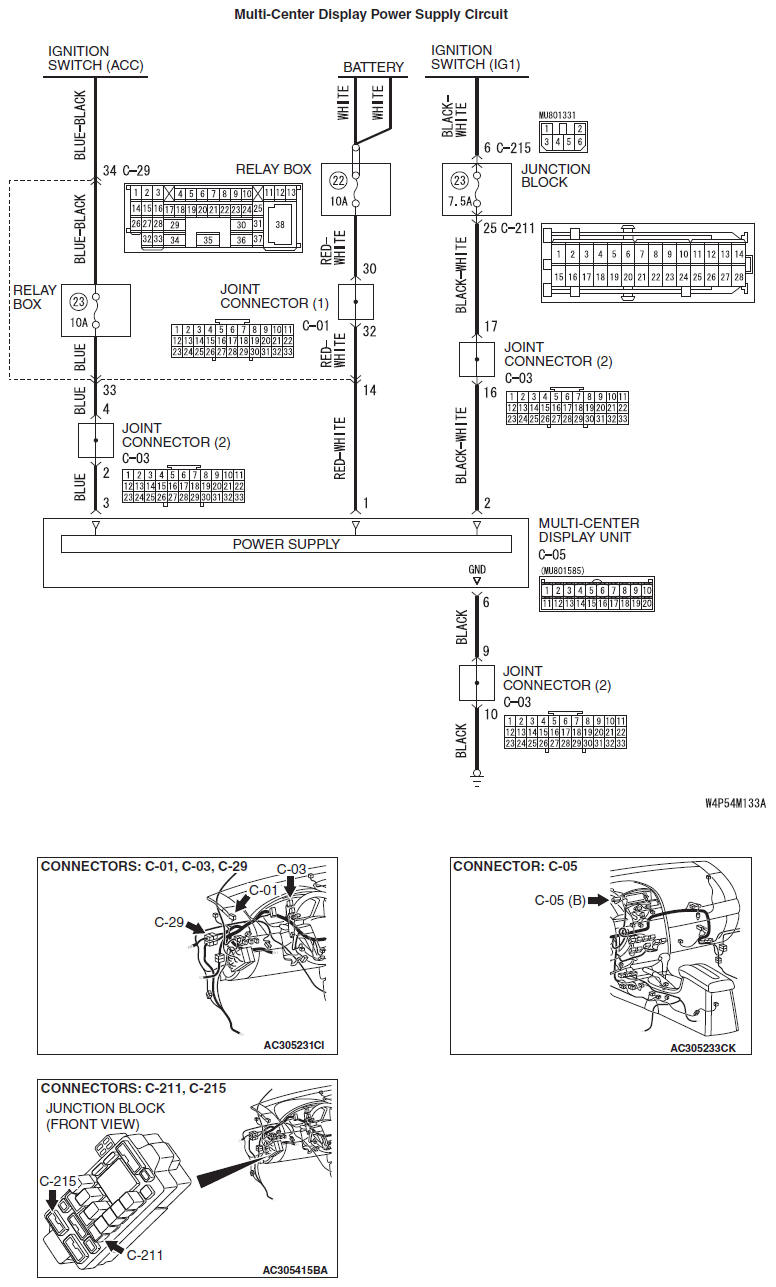

Fig 1: Multi-Center Display Power Supply Circuit Diagram
G06718056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
