>>C << Fuel Pump Module Installation

CAUTION:
  • When installing the fuel pump module into the fuel tank, be careful not to damage the module unit and the float.
  • Check the fuel lever sensor moving part of the fuel pump module works smoothly and then install the fuel pump module into the fuel tank.
    Fig 1: Identifying Fuel Pump Module & Float
    G06699054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Connect the suction hose to the fuel pump module.
  2. Install the fuel pump module into the fuel tank.

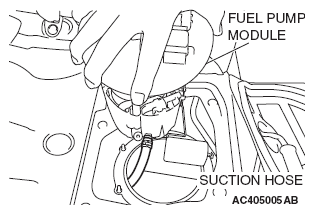

    Fig 2: Identifying Fuel Pump Module & Suction Hose
    G06699055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
