Control Unit

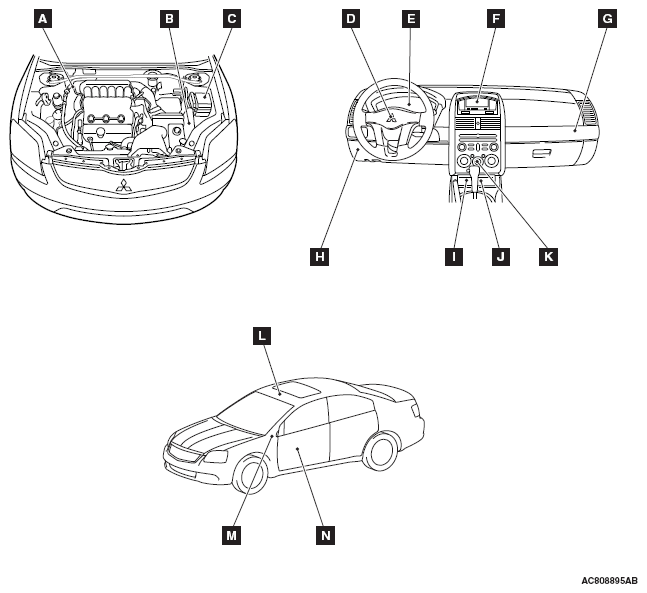

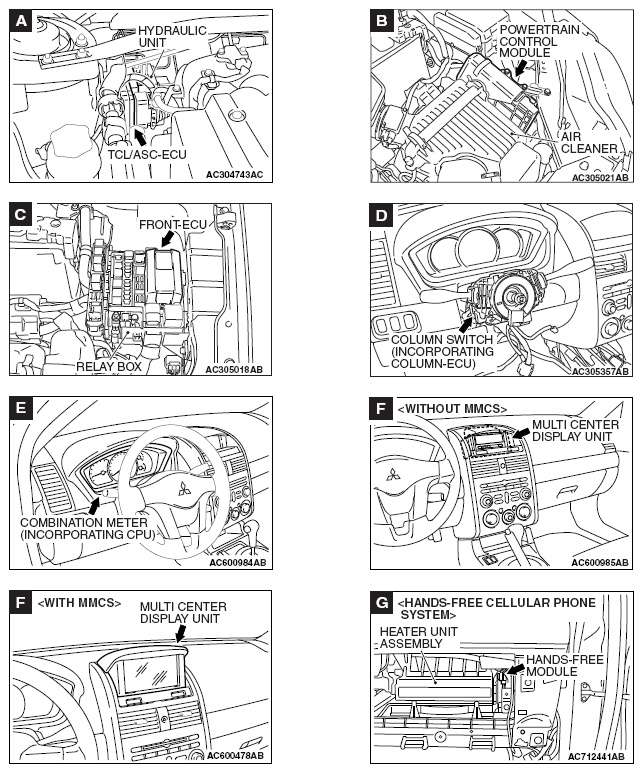

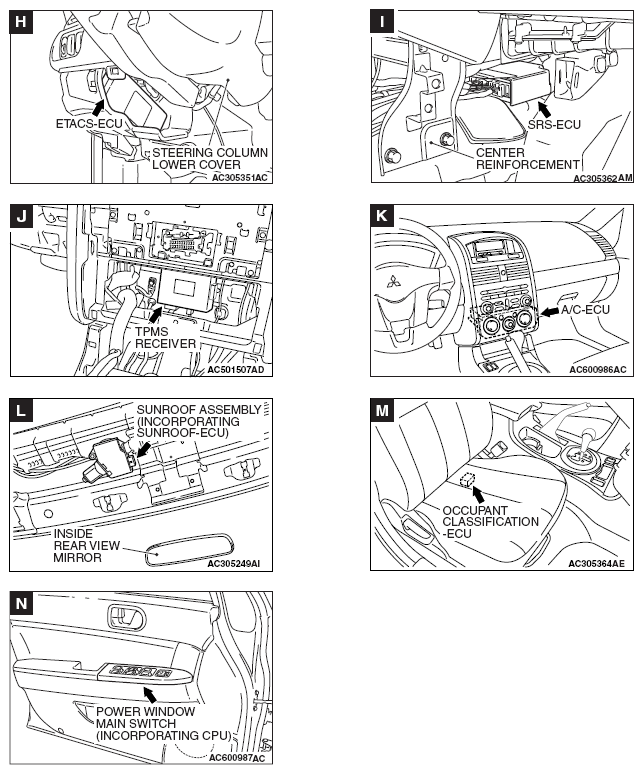

CONTROL UNIT REFERENCE CHART
| NAME | SYMBOL |
|---|---|
| A/C-ECU | K |
| Column switch (incorporating column-ECU) | D |
| Combination meter (incorporating CPU) | E |
| ETACS-ECU | H |
| Front-ECU | C |
| Hands-free module < Hands-free cellular phone system > | G |
| Multi center display unit | F |
| Occupant classification-ECU | M |
| Powertrain control module | B |
| Power window main switch (incorporating CPU) | N |
| SRS-ECU | I |
| Sunroof assembly (incorporating sunroof-ECU) | L |
| TCL/ASC-ECU | A |
| TPMS receiver | J |
