INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply Circuit System: Notes

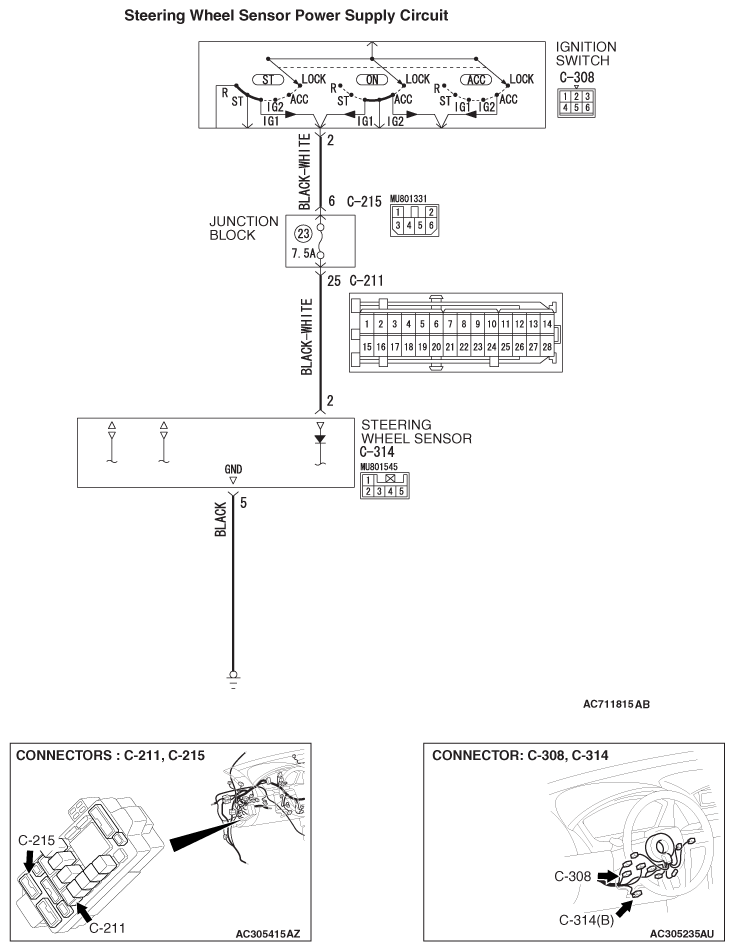

Fig 1: Steering Wheel Sensor Power Supply Circuit
G06710591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
