Removal And Installation - 2.4L Engine: Notes

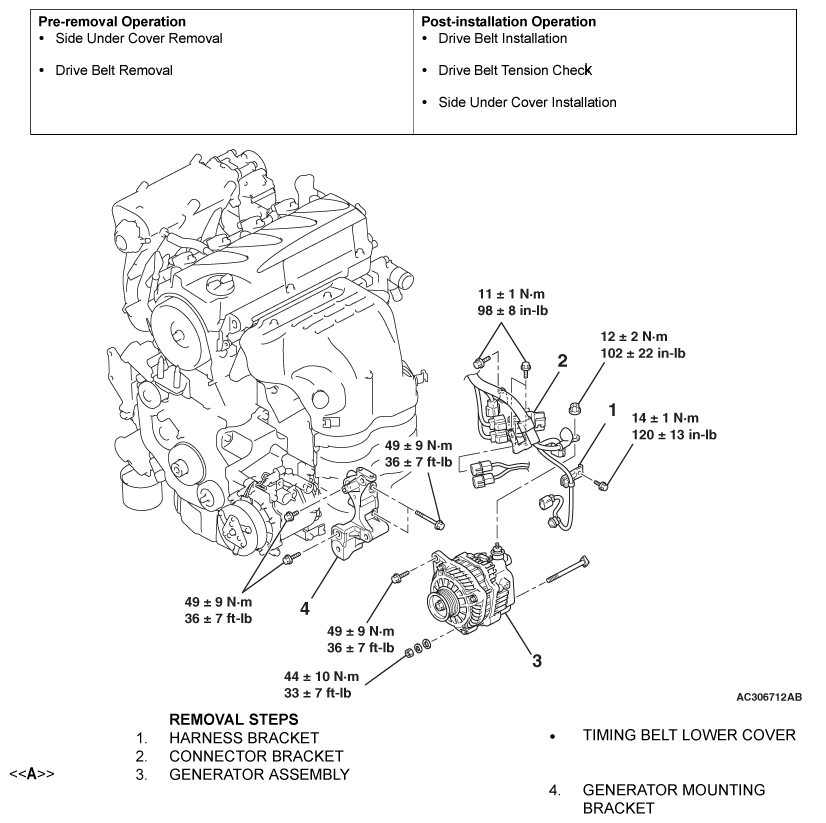

Fig 1: Generator Assembly Components With Torque Specifications (2.4L Engine)
G06715838Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
