Home >> Mitsubishi >> 2012 >> Galant ES >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication >> Engine Oil Pressure Switch >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

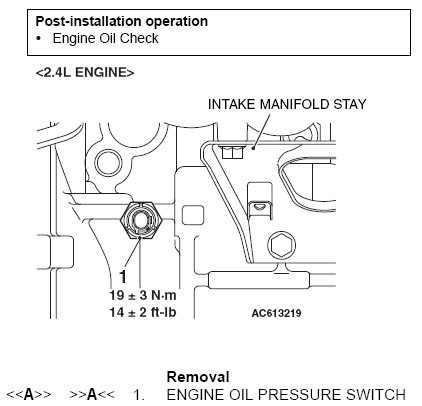

Fig 1: Removal/Installation Of Engine Oil Pressure Switch Components With Torque Specifications
G00506146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
