Removal And Installation - 2.4L Engine: Notes

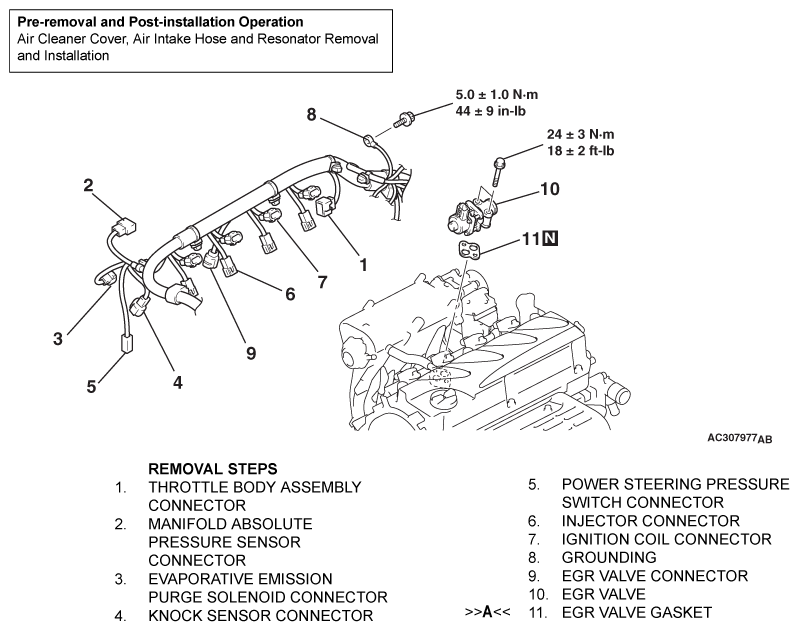

Fig 1: Removal/Installation EGR Valve (2.4L Engine) With Torque Specifications
G06717584Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
