General Specifications
ITEM REFERENCE
| ITEM | DJ1AS | ||
|---|---|---|---|
| RHYL5M | |||

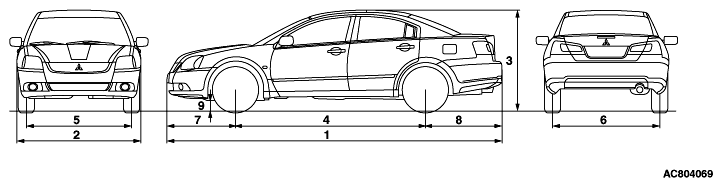

| Vehicle dimension mm (in) | Overall length | 1 | 4, 853 (191.1) |
| Overall width | 2 | 1, 840 (72.4) | |
| Overall height (unladen) | 3 | 1, 470 (57.9) | |
| Wheelbase | 4 | 2, 750 (108.3) | |
| Tread-front | 5 | 1, 570 (61.8) | |
| Tread-rear | 6 | 1, 570 (61.8) | |
| Overhang-front | 7 | 990 (39.0) | |
| Overhang-rear | 8 | 1, 113 (43.8) | |
| Ground clearance | 9 | 150 (5.9) | |
| Vehicle weight kg (lb) | Curb weight | 1, 525 (3, 362) | |
| Gross vehicle weight rating | 1, 985 (4, 376) | ||
| Gross axle weight rating-front | 1, 060 (2, 337) | ||
| Gross axle weight rating-rear | 940 (2, 072) | ||
| Seating capacity | 5 | ||
| Engine | Model No. | 4G69 | |
| Piston displacement cm3 (cu in) | 2, 378 (145.1) | ||
| Transaxle | Model No. | F4A4B | |
| Type | 4A/T | ||
| Fuel system | Fuel supply system | MFI | |
