Removal And Installation: Notes

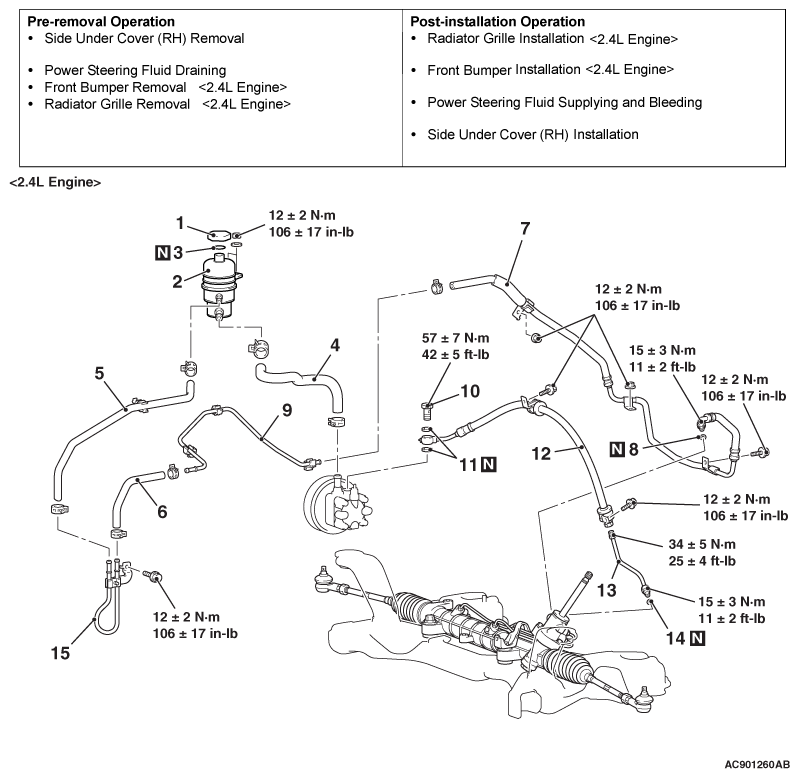

Fig 1: Exploded View Of Power Steering Hoses (2.4L) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

POWER STEERING HOSES COMPONENTS AND REMOVAL STEPS

Removal steps
1		Cap
2		Oil reservoir
3		O-ring
>>E<<	4	Suction hose
>>D<<	5	Return hose (M) <2.4L Engine>
>>C<<	6	Return hose (R) <2.4L Engine>
>>B<<	7	Return tube assembly
8		O-ring
9		Return tube (R) <2.4L Engine>
10		Eye bolt
11		Gasket
>>A<<	12	Pressure hose assembly
>>A<<	13	Pressure tube
14		O-ring
15		Cooler tube assembly <2.4L Engine>
