Removal And Installation - 2.4L Engine: Notes

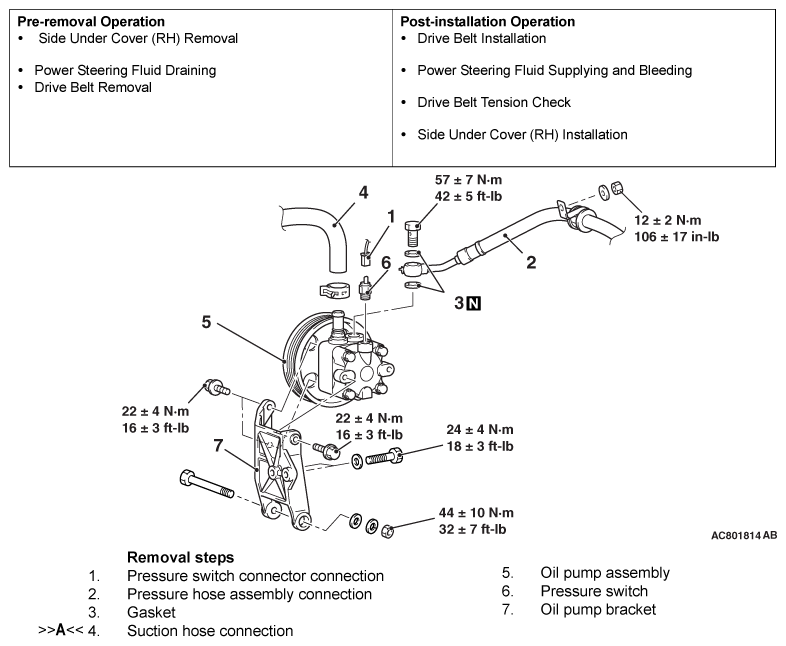

Fig 1: Exploded View Of Power Steering Oil Pump Assembly (2.4L Engine) With Torque Specifications
G06715969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
