Wireless Control Module (WCM)

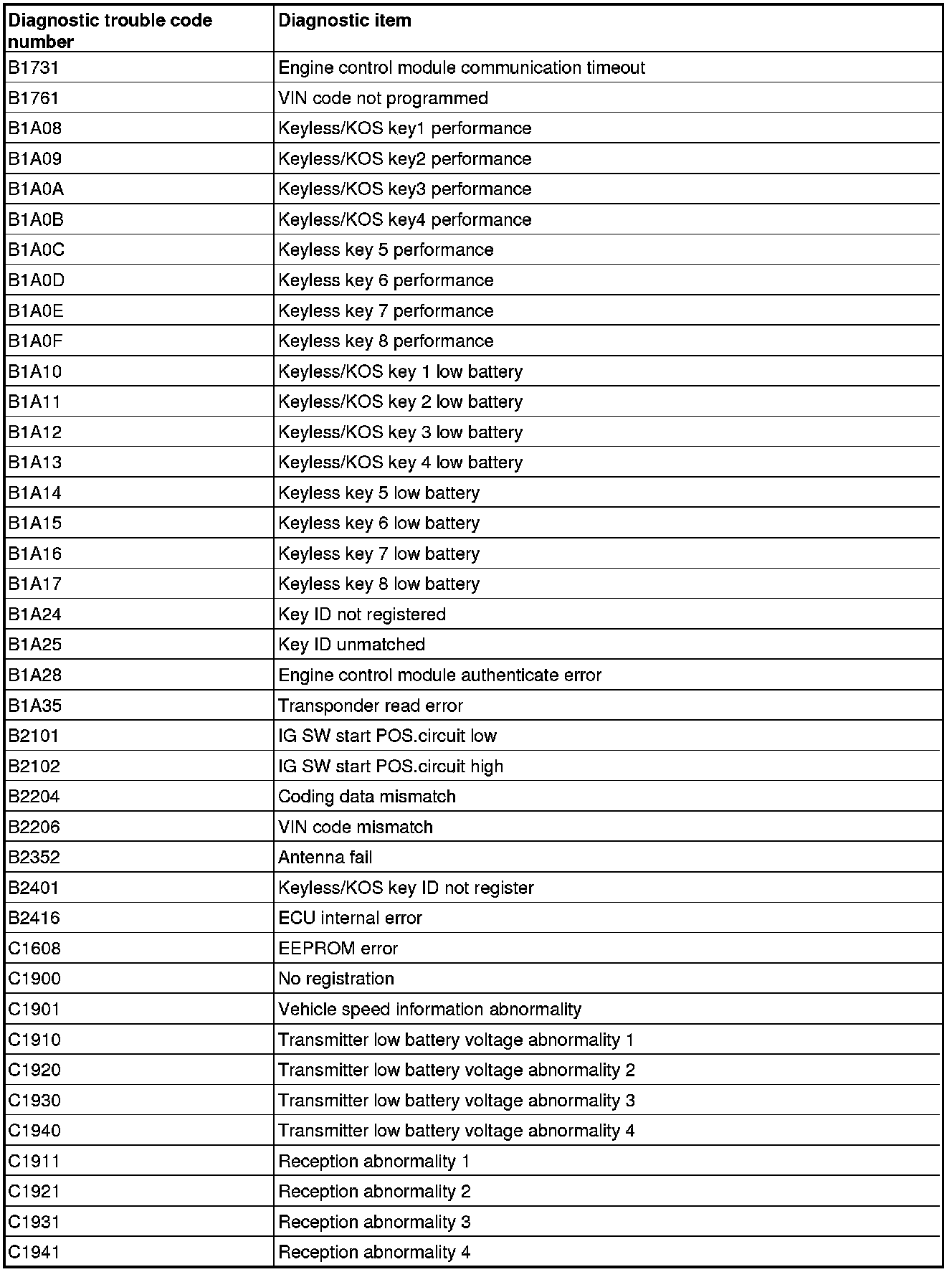

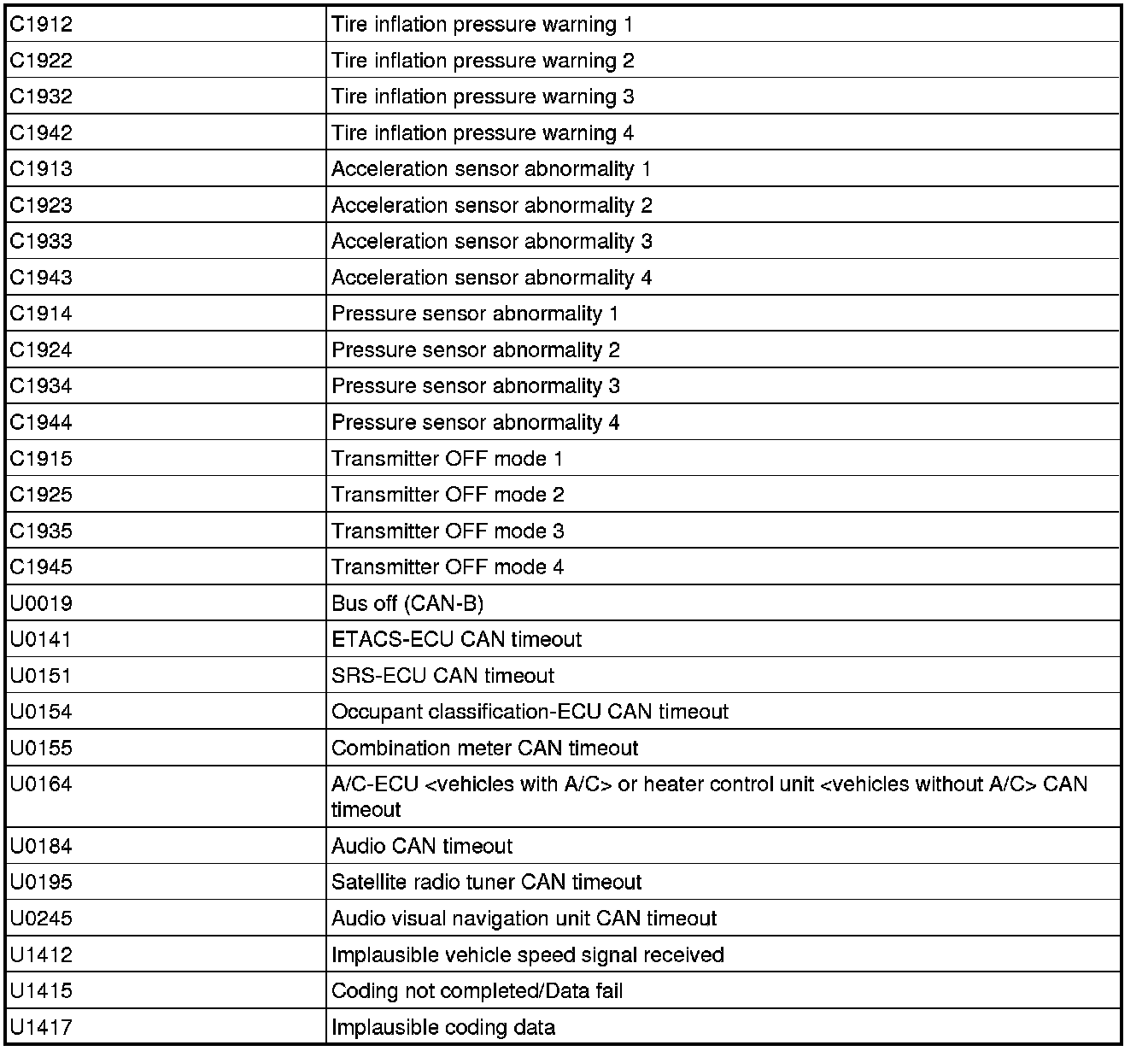

DIAGNOSTIC TROUBLE CODE CHART

CAUTION:
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.
